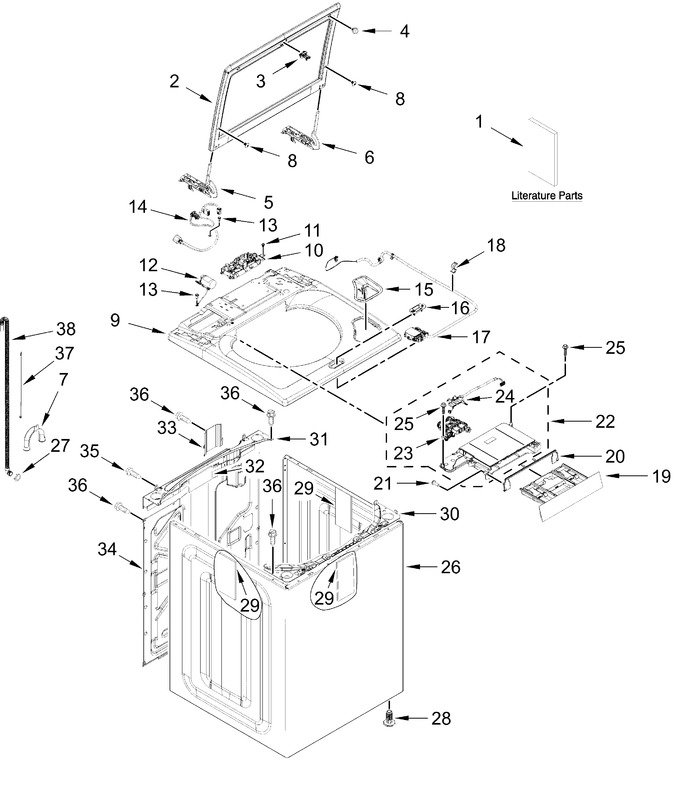

Basket And Tub Parts
Console Parts
Gearcase, Motor And Pump Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11413336 | Lid Assembly (glass, Grey) (Replaces: W11113665) |
|
Immediately | $ 446.50 | ||||
| 3 | W11721071 | Assembly, Strike (Replaces: W11533683) |
|
Immediately | $ 8.16 | ||||
| 4 | W11398707 | Bumper, Lid (Replaces: W10631074) |
|
Immediately | $ 23.30 | ||||
| 5 | W11551369 | Hinge, Lid (left) (Replaces: W11128305) |
|
Immediately | $ 114.96 | ||||
| 6 | W11551376 | Hinge, Lid (right) (Replaces: W11128306) |
|
Immediately | $ 121.92 | ||||
| 7 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 83.51 | |||||
| 8 | W11679612 | Screw (Replaces: W11183686) |
|
$ 14.99 | |||||
| 9 | W11633361 | Top, (black) (Replaces: W11564859) |
|
Immediately | $ 391.96 | ||||
| 10 | W11627517 | Control Unit Assembly, Machine And Motor (Replaces: W11532978) |
|
Immediately | $ 518.10 | ||||
| 11 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 12 | W11638178 | Assembly, Line Filter (Replaces: W11296733) |
|
$ 86.72 | |||||
| 13 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 14 | W11551294 | Power Cord (Replaces: W11112935) |
|
Immediately | $ 41.51 | ||||
| 15 | W11175760 | Bleach Dispenser Bezel (grey) |
|
Immediately | $ 30.27 | ||||
| 16 | W11559688 | Lid Lock Bezel (grey) (Replaces: W11215091) |
|
Immediately | $ 30.29 | ||||
| 17 | W11700916 | Lid Lock Assembly (Replaces: W11543566) |
|
Immediately | $ 76.34 | ||||
| 18 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 11.89 | |||||
| 19 | W11803233 | Dispenser Drawer Assembly (grey) (Replaces: W11178180) |
|
Immediately | $ 57.00 | ||||
| 20 | W11218060 | Dispenser Bezel Assembly (grey) |
|
$ 29.11 | |||||
| 21 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 22 | W11627513 | Assembly, Dispenser Housing & Inlet Valve (Replaces: W11538050) |
|
$ 309.27 | |||||
| 23 | W11595805 | Valve, Water Inlet (Replaces: W11528767) |
|
Immediately | $ 175.68 | ||||
| 24 | W11524851 | Harness, Water Inlet Valve |
|
$ 68.16 | |||||
| 25 | WPW10109200 | Screw (Replaces: 97787) |
|
Immediately | $ 8.80 | ||||
| 26 | W11564792 | Cabinet (black) |
|
Immediately | $ 562.03 | ||||
| 27 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 28 | W11213957 | Foot Assembly, Leveling (Replaces: W11179235) |
|
Immediately | $ 14.24 | ||||
| 29 | W11197416 | Absorber, Impact (Replaces: W10688364) |
|
Immediately | $ 23.38 | ||||
| 30 | W11381327 | Channel, Top Front |
|
Immediately | $ 78.50 | ||||
| 31 | W11712680 | Channel, Top Rear (Replaces: W10512626) |
|
$ 103.88 | |||||
| 32 | WP8564458 | Absorber, Impact (Replaces: 8564458) |
|
Immediately | $ 8.38 | ||||
| 33 | W10676061 | Cover, Harness |
|
$ 36.77 | |||||
| 34 | W11417171 | Panel, Rear |
|
$ 277.67 | |||||
| 35 | W11568617 | Screw (Replaces: W10567155) |
|
$ 14.72 | |||||
| 36 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.97 | |||||
| 37 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 8.30 | |||||
| 38 | W11244231 | Hose, Outer Drain Assembly (Replaces: W11203364) |
|
Immediately | $ 32.07 | ||||
| W11744254 | Owners Manual |
|
- | ||||||
| W11744295 | Energy Guide |
|
- | ||||||
| W11744258 | Quick Start Guide |
|
- |
