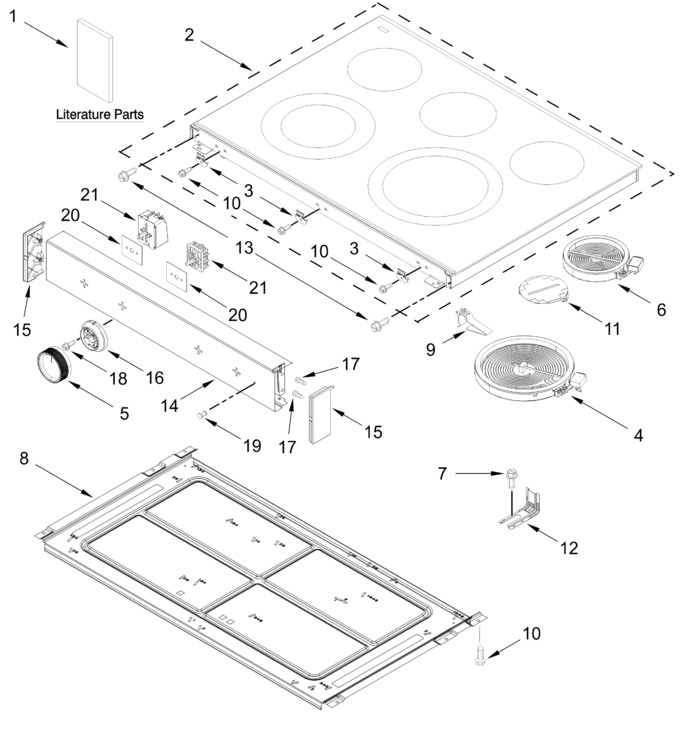

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11778613 | Cooktop (black, Includes Cooktop Bracket) (Replaces: W11678994) |
|
$ 988.00 | |||||
| 3 | W11730543 | Bracket, Cooktop (Replaces: W11593284) |
|
Immediately | $ 11.52 | ||||
| 4 | W11517959 | Element, (dual 3000w) (Replaces: W11282542) |
|
Immediately | $ 134.44 | ||||
| 5 | W11773189 | Knob (single, Stainless) (Replaces: W11720895) |
|
Immediately | $ 54.33 | ||||
| 6 | W11171119 | Element (1200w) (Replaces: W10248261) |
|
Immediately | $ 182.23 | ||||
| 7 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 8 | W11729951 | Pan, Radiant Element (Replaces: W11300812) |
|
$ 223.66 | |||||
| 9 | W11663556 | Spring, Element (Replaces: W11600012) |
|
Immediately | $ 14.84 | ||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 11 | W11706247 | Element, Warm Zone (Replaces: W11668631) |
|
Immediately | $ 133.94 | ||||
| 12 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 13 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 14 | W11773184 | Manifold, Panel (upper) (Replaces: W11705508) |
|
Immediately | $ 327.80 | ||||
| 15 | W11773185 | Manifold, Endcap (left) (Replaces: W11608558) |
|
$ 69.72 | |||||
| 16 | W11773188 | Bezel (stainless) (Replaces: W11364739) |
|
Immediately | $ 52.84 | ||||
| 17 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 18 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 19 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 20 | W11773187 | Infinite, Switch Cap (Replaces: W11666791) |
|
- | |||||
| 21 | W10857622 | Switch, Infinite (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| W11730264 | Harness, Cooktop (Replaces: W11334489) |
|
$ 180.62 | ||||||
| W11773192 | Knob (dual, Stainless) (Replaces: W11720887) |
|
Immediately | $ 54.33 | |||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| ARI9E076A4EB9AA7BF3DBA6ED9D0C1B5D12 | (center Rear) |
|
- | ||||||
| W10823727 | Element, Dual (3000w) (Replaces: W10711900) |
|
Immediately | $ 342.63 | |||||
| W11638635 | Owners Manual |
|
- | ||||||
| W11729954 | Harness, Front Dual (Replaces: W11341202) |
|
$ 300.25 | ||||||
| ARI1CEA8328406821DB8179A8C971BDB5B4 | (left Rear, Right Rear) |
|
- | ||||||
| ARI68146C2FADA8E1AE3122F181AC9275E2 | (left Front, Right Front) |
|
- | ||||||
| W11729952 | Harness, Hidden Bake (Replaces: W11585874) |
|
$ 61.80 | ||||||
| W11720124 | Tech Sheet |
|
- | ||||||
| W11773198 | Harness, Main (Replaces: W11708795) |
|
$ 242.33 | ||||||
| W10911303 | Switch, Infinite (Replaces: W10578768) |
|
Immediately | $ 104.64 | |||||
| W11702316 | Quick Start Guide |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11773661 | Harness, Cooktop (Replaces: W11671017) |
|
- | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| W11773186 | Manifold, Endcap (right) (Replaces: W11608559) |
|
$ 69.72 |
