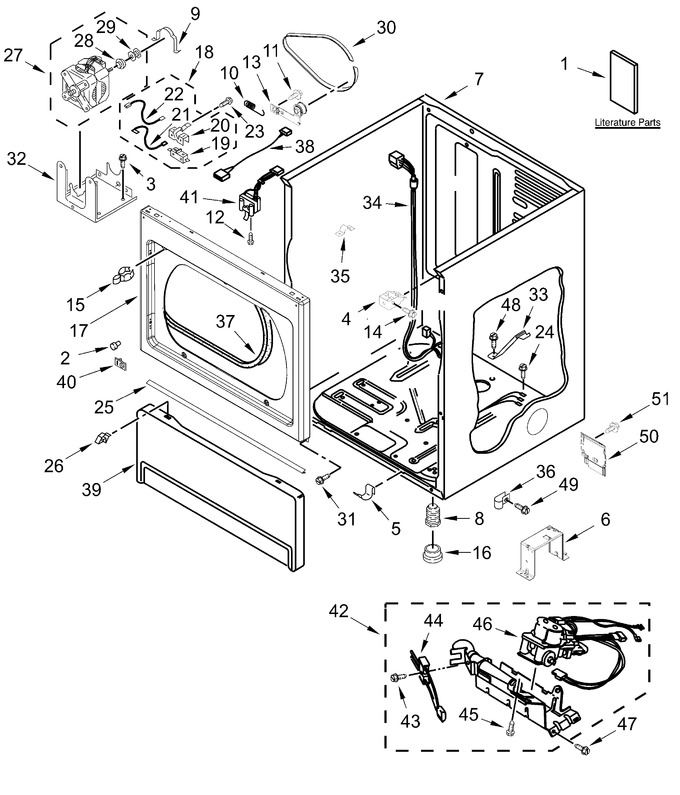

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARIF3B42C015092609901FE1334C9EA977A | Literature Parts (located Behind Toe Panel) |
|
- | |||||
| 2 | 693152 | Bumper |
|
$ 11.51 | |||||
| 3 | WP681414 | Screw (Replaces: 3390663) |
|
Immediately | $ 8.47 | ||||
| 4 | 3391846 | Clip, Front Panel |
|
$ 22.21 | |||||
| 5 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 8.14 | |||||
| 6 | 3389888 | Bracket, Support (Replaces: 3389889) |
|
- | |||||
| 7 | W11417441 | Cabinet (white) (Replaces: W11161907) |
|
$ 440.17 | |||||
| 8 | 49621 | Dryer Foot (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | WP3395530 | Screw (Replaces: 697773) |
|
$ 8.57 | |||||
| 13 | WPW10344193 | Pulley-idler Assembly (Replaces: W10344193) |
|
Immediately | $ 87.96 | ||||
| 14 | 681615 | Screw (Replaces: 3391915) |
|
$ 14.57 | |||||
| 15 | W11429589 | Strike, Door (Replaces: W11224633) |
|
Immediately | $ 20.99 | ||||
| 16 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 8.21 | |||||
| 17 | W11832207 | Panel, Front (Replaces: W10694688) |
|
$ 286.16 | |||||
| 18 | 279782 | Switch Assembly (Replaces: 8066134) |
|
Immediately | $ 54.44 | ||||
| 19 | 279782 | Switch, Belt (Replaces: 3394881) |
|
Immediately | $ 54.44 | ||||
| 20 | WP8066120 | Lever, Belt Switch (Replaces: 8066120) |
|
Immediately | $ 34.77 | ||||
| 21 | 3398948 | Wire, Jumper (broken Belt Switch) |
|
$ 64.66 | |||||
| 22 | W10167612 | Wire, Belt Switch |
|
$ 13.42 | |||||
| 23 | WP98129 | Screw (Replaces: 98129) |
|
$ 8.18 | |||||
| 24 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 25 | W10576519 | Seal, Deflector |
|
- | |||||
| 26 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 27 | W10841144 | Motor (Replaces: W10396031) |
|
Immediately | $ 234.31 | ||||
| 28 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 139.08 | ||||
| 29 | WP8066184 | Pulley, Motor (Replaces: 3394341) |
|
Immediately | $ 51.02 | ||||
| 30 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 44.00 | ||||
| 31 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 32 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 140.27 | |||||
| 33 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 34 | W10807483 | Harness, Upper/lower |
|
- | |||||
| 35 | WP98997 | Clip (Replaces: 98997) |
|
$ 11.64 | |||||
| 36 | 3387561 | Clamp, Pipe |
|
- | |||||
| 37 | WP3387242 | Front Panel Seal (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 38 | 8283298 | Jumper, Door Switch |
|
$ 87.92 | |||||
| 39 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 250.25 | |||||
| 40 | W10521429 | Cover Strike (white) |
|
- | |||||
| 41 | WPW10237959 | Switch, Door (Replaces: W10237959) |
|
Immediately | $ 55.64 | ||||
| 42 | W11676914 | Burner Assembly (Replaces: W11566859) |
|
- | |||||
| 43 | WPW10366705 | Screw (Replaces: 3393909) |
|
$ 7.88 | |||||
| 44 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 78.90 | ||||
| 45 | WP693995 | Screw (Replaces: 3387057) |
|
Immediately | $ 7.55 | ||||
| 46 | 279923 | Valve, Gas (Replaces: 8281911) |
|
Immediately | $ 286.03 | ||||
| 47 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 48 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 49 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 50 | W11417441 | Cover, Terminal (Replaces: W11378153) |
|
$ 440.17 | |||||
| 51 | W11808444 | Screw (Replaces: 98139) |
|
- | |||||
| W10470674 | Kit, 4-way Venting |
|
Immediately | $ 76.65 | |||||
| ARI49056CBCEA95B374289EE824637D0633 | Dryer Exhaust Kit Not Included |
|
- | ||||||
| W11647897 | Installation Instructions |
|
- | ||||||
| W11651037 | Tech Sheet |
|
- | ||||||
| W11463414 | Installation Instructions, Card Reader |
|
- |
