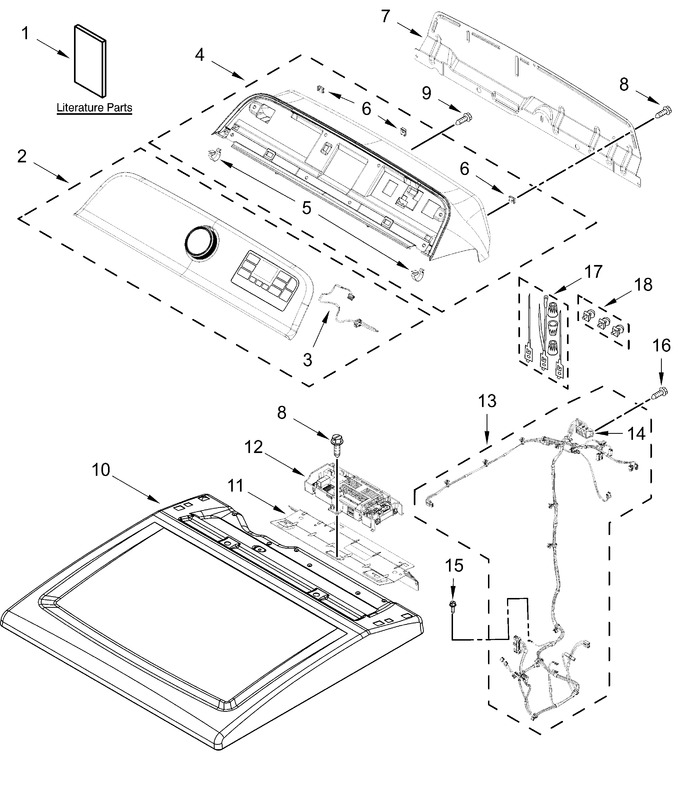

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11778760 | Fascia Assembly (Replaces: W11620093) |
|
$ 462.63 | |||||
| 3 | W11164312 | Harness, User Interface (hmi) |
|
$ 167.98 | |||||
| 4 | W11401366 | Console Assembly (chrome Shadow) (Replaces: W11178520) |
|
Immediately | $ 378.62 | ||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W11213336 | U-nut (Replaces: W10298336) |
|
$ 8.13 | |||||
| 7 | W11433112 | Panel, Rear Console |
|
$ 66.08 | |||||
| 8 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 9 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 10 | W11641122 | Top (chrome Shadow) (Replaces: W11623547) |
|
$ 268.82 | |||||
| 11 | W11431865 | Bracket, Electronic Control (Replaces: W10896068) |
|
$ 57.36 | |||||
| 12 | W11782441 | Appliance Control Unit (acu) (Replaces: W11769716) |
|
Immediately | $ 295.70 | ||||
| 13 | W11556948 | Harness, Main |
|
$ 253.27 | |||||
| 14 | WP3397659 | Terminal Block (Replaces: 3397659) |
|
$ 24.17 | |||||
| 15 | W11693756 | Screw (Replaces: 359625) |
|
Immediately | $ 14.76 | ||||
| 16 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 17 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 106.04 | ||||
| 18 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 55.66 | ||||
| W11691176 | Installation Instructions |
|
- | ||||||
| W11691181 | Quick Start Guide |
|
- |
