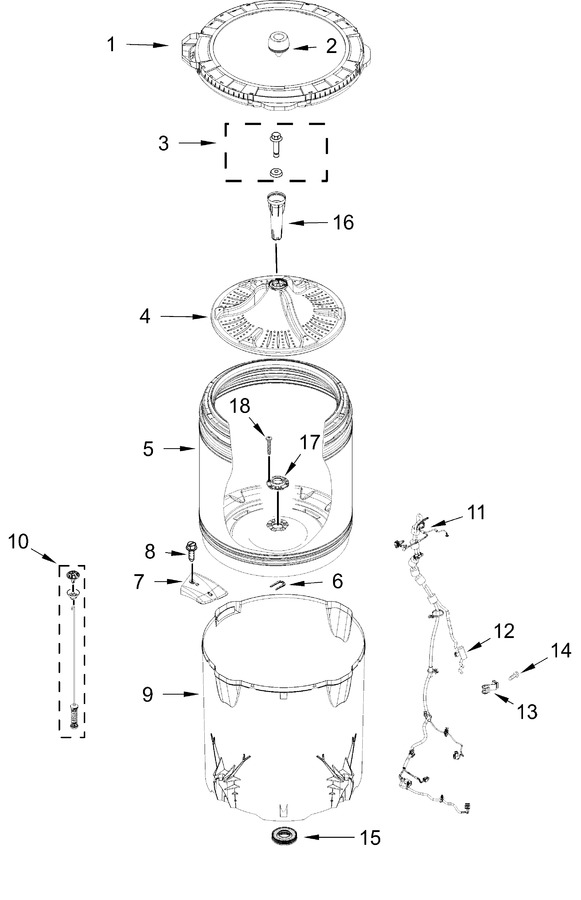

Basket And Tub Parts
Console And Water Inlet Parts
Gearcase, Motor And Pump Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11782127 | Tub Ring (Replaces: W11712569) |
|
$ 54.33 | |||||
| 2 | W10793634 | Dispenser Assembly (Replaces: W10777969) |
|
Immediately | $ 80.57 | ||||
| 3 | W11223765 | Bolt And Washer (Replaces: W11121786) |
|
Immediately | $ 15.20 | ||||
| 4 | W11397111 | Impeller (washplate) (Replaces: W10680215) |
|
Immediately | $ 170.29 | ||||
| 5 | W11782128 | Basket Assembly (Replaces: W11669965) |
|
- | |||||
| 6 | W11385424 | Retainer, Drive Block (Replaces: W11284133) |
|
Immediately | $ 12.97 | ||||
| 7 | W11782102 | Drain Pump Filter (Replaces: W11679641) |
|
- | |||||
| 8 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 8.26 | ||||
| 9 | W11674387 | Tub |
|
Immediately | $ 614.25 | ||||
| 10 | W11782129 | Damper Assembly, Tub Suspension (set Of 4, Includes Suspension Bushings And Suspension Balls) (Replaces: W11674511) |
|
- | |||||
| 11 | W11782130 | Harness, Lower (Replaces: W11677810) |
|
Immediately | $ 148.70 | ||||
| 12 | W11782105 | Pressure Hose Switch (Replaces: W11732353) |
|
$ 72.73 | |||||
| 13 | W11755726 | Clip, Harness (Replaces: W11284522) |
|
Immediately | $ 7.72 | ||||
| 14 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.80 | ||||
| 15 | W10324647 | Seal, Tub (Replaces: W10580763) |
|
Immediately | $ 93.50 | ||||
| 16 | W10836692 | Barrel, Agitator (Replaces: W10680220) |
|
Immediately | $ 116.56 | ||||
| 17 | W10528947 | Hub Driven Basket (Replaces: W11674590) |
|
Immediately | $ 44.23 | ||||
| 18 | WP8533953 | Screw (Replaces: 8533953) |
|
Immediately | $ 7.55 |
