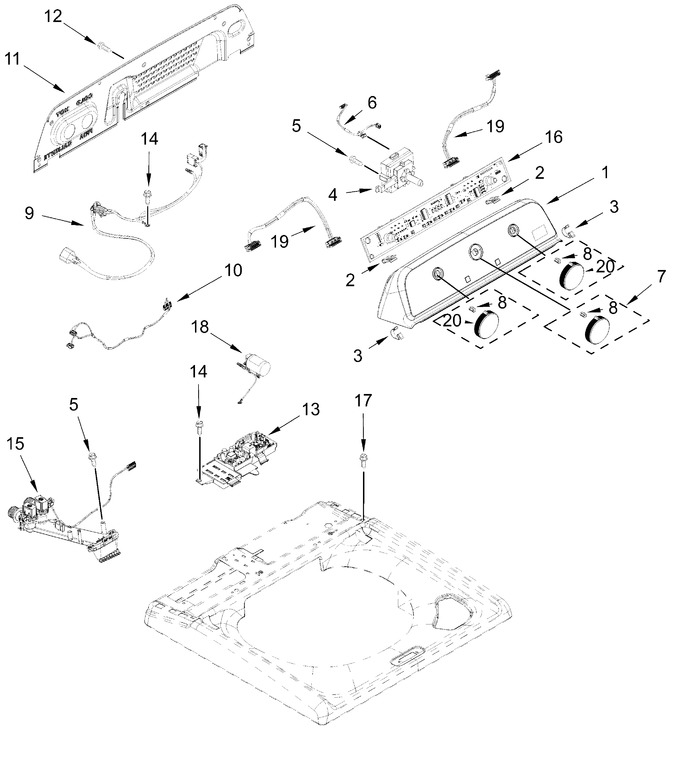

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Basket And Tub Parts
Console And Water Inlet Parts
Gearcase, Motor And Pump Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11782258 | Console Assembly (white) (Replaces: W11673748) |
|
$ 139.80 | |||||
| 2 | W11213336 | U-nut (Replaces: W10298336) |
|
$ 7.74 | |||||
| 3 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 4 | W10859568 | Switch, Rotary Encoder (5 Position) (Replaces: W10414411) |
|
Immediately | $ 179.35 | ||||
| 5 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 6 | W11782263 | Hmi Assembly (Replaces: W11721470) |
|
- | |||||
| 7 | W11782259 | Knob Assembly (large) (Replaces: W11739935) |
|
- | |||||
| 8 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 9 | W11551294 | Power Cord (Replaces: W11112935) |
|
Immediately | $ 39.53 | ||||
| 10 | W11782261 | Harness, Water Valve (Replaces: W11335103) |
|
$ 46.01 | |||||
| 11 | W11781653 | Console Rear Cover Panel (Replaces: W11674332) |
|
$ 264.23 | |||||
| 12 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.26 | |||||
| 13 | W11836791 | Control Unit Assembly, Machine And Motor (Replaces: W11734307) |
|
Immediately | $ 267.69 | ||||
| 14 | WP489128 | Screw (Replaces: W10142728) |
|
$ 10.88 | |||||
| 15 | W11797439 | Water Inlet Assembly (complete) (Replaces: W11710994) |
|
Immediately | $ 349.08 | ||||
| 16 | W11675701 | Hmi (Replaces: W11612331) |
|
Immediately | $ 304.75 | ||||
| 17 | WPW10109200 | Screw (Replaces: 97787) |
|
Immediately | $ 8.00 | ||||
| 18 | W11638178 | Assembly, Line Filter (Replaces: W11296733) |
|
$ 82.59 | |||||
| 19 | W11736787 | Harness, Hmi (Replaces: W11506959) |
|
$ 20.63 | |||||
| 20 | W11782279 | Assembly, Knob (small) (Replaces: W11663221) |
|
- |
