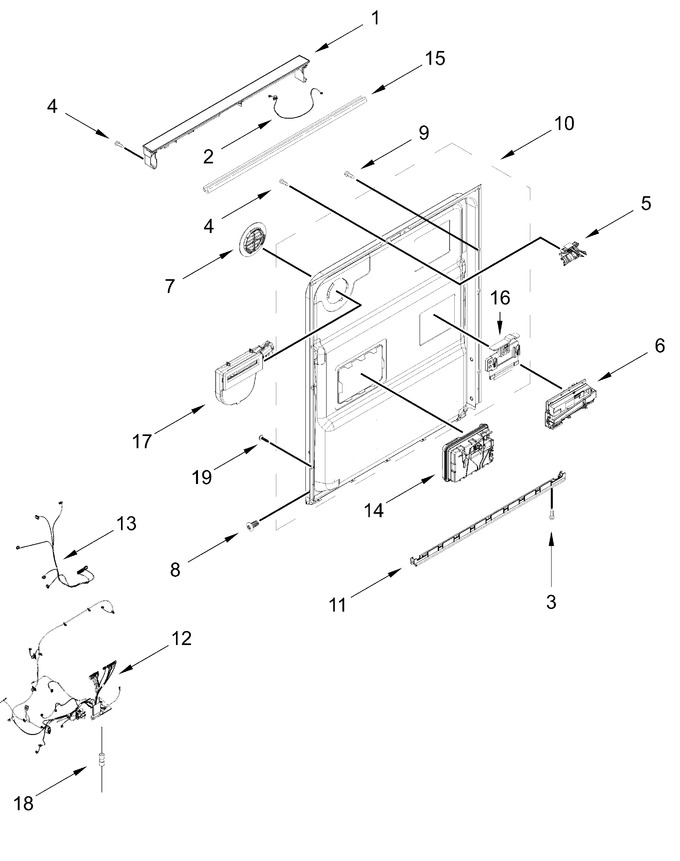

Control Panel And Inner Door Parts


Door And Panel Parts


Lower Rack Parts


Optional Parts (not Included)


Pump, Washarm And Motor Parts


Tub And Frame Parts


Upper Rack And Track Parts


Upper Wash And Rinse Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11630613		Console Cap (black)   (Replaces: W11591426)				$ 98.42
2	W11627526		Jumper, Door   (Replaces: W11084865)			Immediately	$ 17.71
3	W11627527		Screw   (Replaces: W11258418)			Immediately	$ 14.72
4	WPW10213953		Screw   (Replaces: W10711884)			Immediately	$ 7.55
5	W11412299		Latch Assembly (includes Switch)   (Replaces: W11091934)			Immediately	$ 29.70
6	W11781426		Control, Electronic   (Replaces: W11757429)				$ 298.65
7	W11545290		Bezel, Vent   (Replaces: W11025634)			Immediately	$ 14.87
8	W11755068		Screw   (Replaces: W11714324)		Appelez-nous	-
9	WPW10348409		Screw   (Replaces: W10348409)			Immediately	$ 8.20
10	W11767099		Inner Door Assembly   (Replaces: W11749163)				$ 363.96
11	W11664713		Seal, Door Bottom   (Replaces: W11563231)			Immediately	$ 59.49
12	W11726283		Wiring Harness, Main (includes Thermostat & Fuse)   (Replaces: W11649439)				$ 269.85
13	W11611303		Wiring Harness, Inner Door   (Replaces: W11084845)			Immediately	$ 17.94
14	W11412300		Dispenser Assembly   (Replaces: W11092649)			Immediately	$ 172.65
15	W11213719		Seal, Console/door   (Replaces: W11050927)			Immediately	$ 172.77
16	W11088985		Hanger, Control				$ 34.23
17	W11649995		Vent Assembly   (Replaces: W11527847)			Immediately	$ 102.11
18	W11397505		Fuse, In-line				$ 115.82
19	WPW10348408		Screw   (Replaces: W10348408)			Immediately	$ 7.55
