SELECT A DIAGRAM

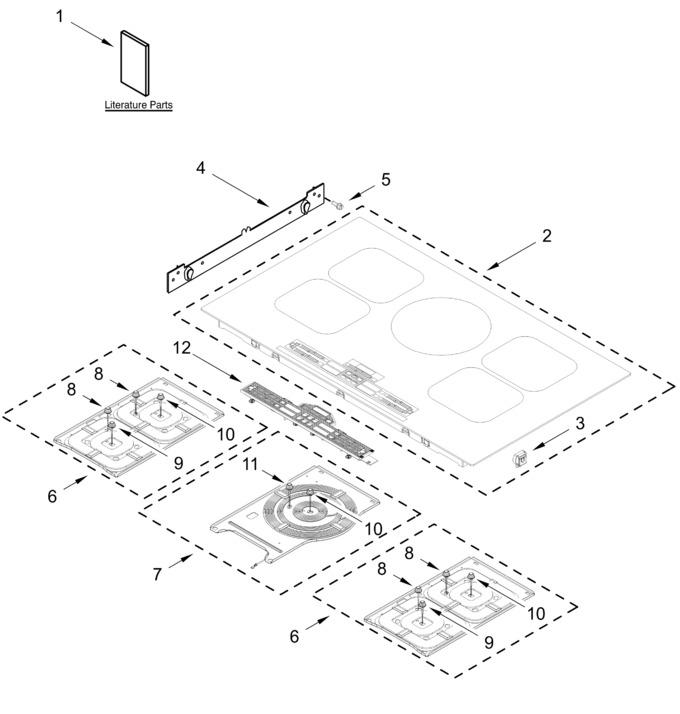

Cooktop Parts


Interior Parts


Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11771876		Glass Cooktop Assembly   (Replaces: W11696211)				$ 1,658.11
3	W11495019		Cooktop Spring   (Replaces: W11279477)			Immediately	$ 40.26
4	W11495626		Cooktop Support Bracket   (Replaces: W11279478)			Immediately	$ 85.59
5	7101P41560		Screw		Appelez-nous	-
6	W11771128		Induction Element Assembly   (Replaces: W11669267)				$ 580.05
7	W11771129		Induction Element Assembly   (Replaces: W11669278)				$ 580.05
8	W11739255		Sensor Assembly		Appelez-nous	-
9	W11739256		Sensor Assembly		Appelez-nous	-
10	W11739258		Sensor Assembly		Appelez-nous	-
11	W11739257		Sensor Assembly		Appelez-nous	-
12	W11771130		User Interface Assembly (hmi)   (Replaces: W11740991)			Immediately	$ 465.97
	W11741510		Quick Start Guide		Appelez-nous	-
	W11741340		Tech Sheet		Appelez-nous	-
	W11721952		Owners Manual		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
