SELECT A DIAGRAM

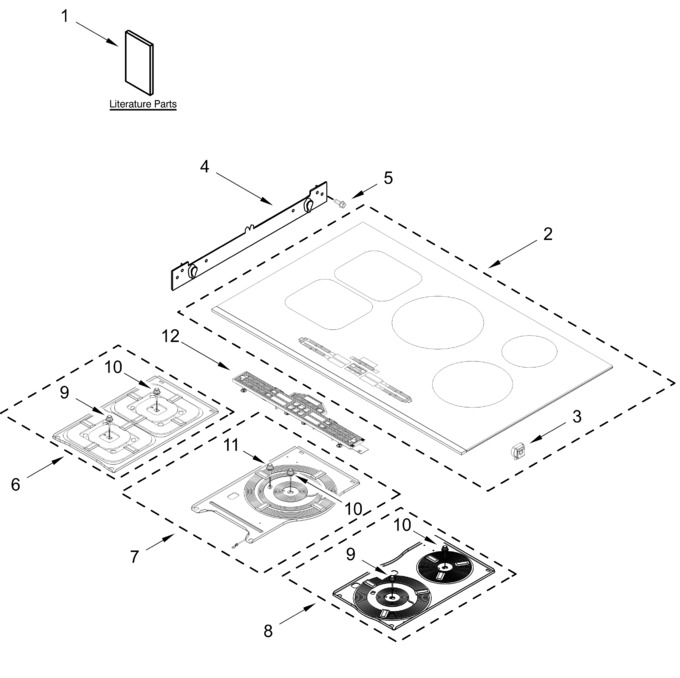

Cooktop Parts


Interior Parts


Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11778586		Glass Cooktop Assembly   (Replaces: W11700088)		Appelez-nous	-
3	W11495019		Cooktop Spring   (Replaces: W11279477)			Immediately	$ 40.26
4	W11495626		Cooktop Support Bracket   (Replaces: W11279478)			Immediately	$ 85.59
5	7101P41560		Screw		Appelez-nous	-
6	W11771136		Induction Element Assembly   (Replaces: W11669266)				$ 600.35
7	W11771129		Induction Element Assembly   (Replaces: W11669278)				$ 580.05
8	W11776490		Induction Element Assembly   (Replaces: W11669271)		Appelez-nous	-
9	W11739256		Sensor Assembly		Appelez-nous	-
10	W11739258		Sensor Assembly		Appelez-nous	-
11	W11739257		Sensor Assembly		Appelez-nous	-
12	W11776493		User Interface Assembly (hmi)   (Replaces: W11642029)		Appelez-nous	-
	W11731572		Tech Sheet		Appelez-nous	-
	W11721952		Owners Manual		Appelez-nous	-
	W11721957		Quick Start Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
