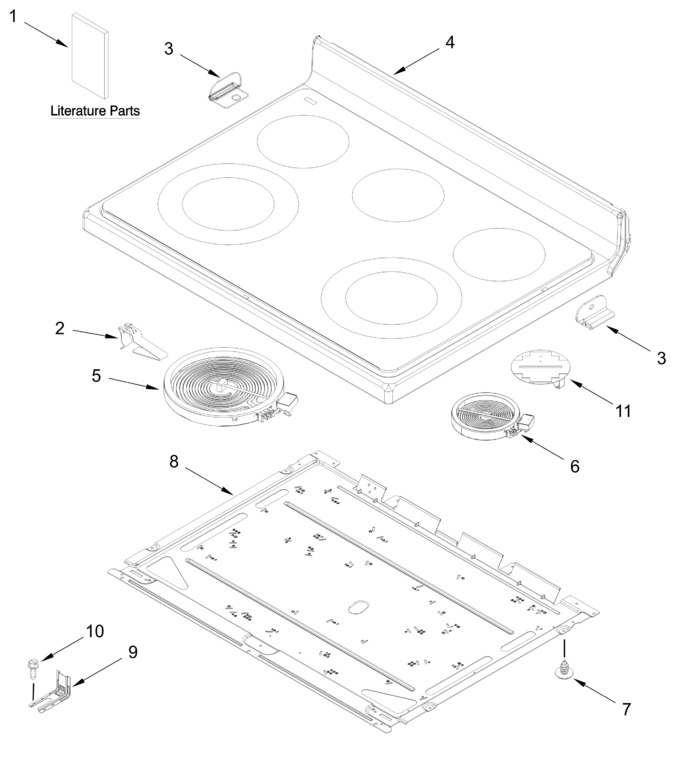

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11663556		Spring, Element   (Replaces: W11600012)			Immediately	$ 14.84
3	W10607641		Bracket, Cooktop (left)				$ 33.52
4	W11719708		Cooktop (black)   (Replaces: W11629477)				$ 505.75
5	W11517959		Element, Dual (3000w)   (Replaces: W11282542)			Immediately	$ 134.44
6	W11171119		Element (1200w)   (Replaces: W10248261)			Immediately	$ 182.23
7	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
8	W11728329		Pan, Radiant Element   (Replaces: W11640572)			Immediately	$ 143.49
9	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
10	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
11	W11706247		Element, Warm Zone   (Replaces: W11668631)			Immediately	$ 133.94
	ARI68146C2FADA8E1AE3122F181AC9275E2		(left Front, Right Front)		Appelez-nous	-
	W11781570		Main, Harness   (Replaces: W11765577)		Appelez-nous	-
	ARIAF8B2CF0387D82C1B76CFE2500CD62C6		(left Rear, Right Rear)		Appelez-nous	-
	W11598759		Harness, Warm Zone		Appelez-nous	-
	W11825100		Harness, Cooktop (right)   (Replaces: W11134845)				$ 86.33
	W11675846		Harness, Cooktop (left)   (Replaces: W11134603)			Immediately	$ 39.67
	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	ARI7A67B14AEA62F6D2A04BCF7D52CA12EE		(center)		Appelez-nous	-
	W11618626		Tech Sheet		Appelez-nous	-
	W11618614		Quick Start Guide		Appelez-nous	-
	W11617173		Owners Manual		Appelez-nous	-
