SELECT A DIAGRAM

Bulkhead Parts


Cabinet Parts


Optional Parts (not Included)

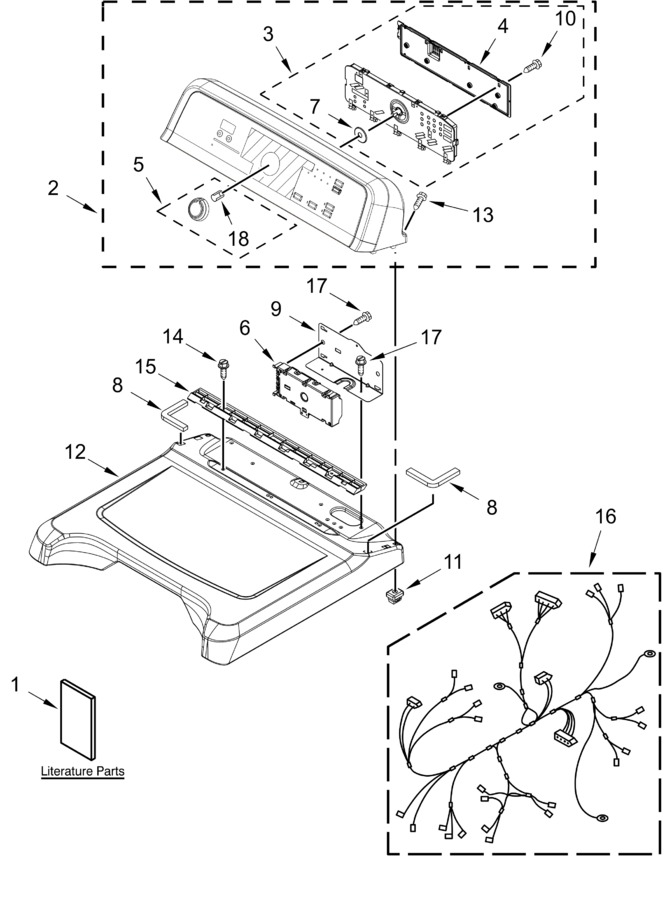

Top And Console Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	WPW10562317		Console Assembly (white)   (Replaces: W10562317)				$ 454.88
3	WPW10388672		User Interface   (Replaces: W10388672)				$ 323.31
4	W10051124		Cover, Ui Rear				$ 251.11
5	WPW10571098		Assembly, Control Knob (grey)   (Replaces: W10571098)				$ 58.98
6	WPW10536008		Control, Electronic   (Replaces: W10536008)			Immediately	$ 222.68
7	8572039		Seal, User Interface		Appelez-nous	-
8	W10219695		Seal, Top (left)		Appelez-nous	-
9	8563853		Bracket, Machine Controller		Appelez-nous	-
10	WP4449745		Screw   (Replaces: W10003770)				$ 7.49
11	W10112673		Clip, Console				$ 9.29
12	W10223157		Top (white)				$ 159.40
13	W10131402		Screw		Appelez-nous	-
14	WP33001882		Screw   (Replaces: 337686)				$ 79.72
15	8558863		Bracket, Console				$ 33.78
16	W10319798		Harness, Electric		Appelez-nous	-
17	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.82
18	W10153920		Clip, Spring		Appelez-nous	-
	W10562334		Owners Manual		Appelez-nous	-
	W10562335		Instructions, Installation		Appelez-nous	-
	W10219694		Seal, Top (right)		Appelez-nous	-
	W10393006		Sheet, Tech		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
