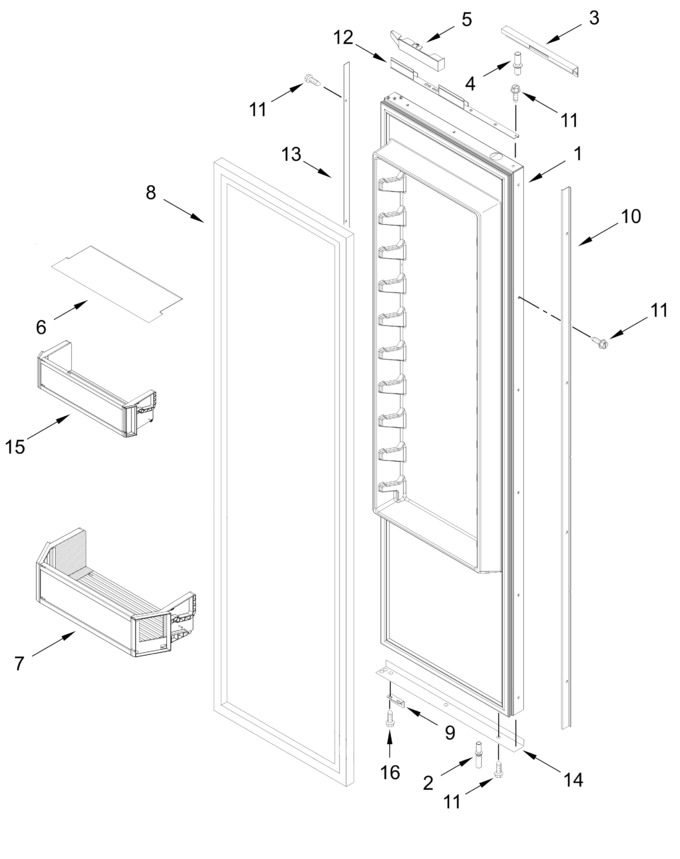

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11827075		Door, Refrigerator (includes Door Gasket)   (Replaces: W10775712)				$ 1,085.41
2	W11337869		Pin, Bottom Door				$ 64.91
3	W10775725		Cover, Top Door (charcoal)			Immediately	$ 156.51
4	W10234194		Pin, Top Door				$ 17.66
5	W10606813		Insert, Door Arm (grey, Top)				$ 36.38
6	W11454935		Mat, Door Bin (includes 1 Gallon And 3 Shallow Mats)		Appelez-nous	-
7	W11450399		Bin, Gallon Door		Appelez-nous	-
8	W10800809		Gasket, Door (black)   (Replaces: W10764833)			Immediately	$ 351.03
9	W10606841		Bracket, Panel Mounting (grey)				$ 39.81
10	W10755284		Trim, Handle Side Door (charcoal)				$ 222.36
11	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 8.13
12	W10755238		Trim, Top Door (charcoal)		Appelez-nous	-
13	W10749614		Trim, Hinge Side Door (charcoal)				$ 227.23
14	W10755288		Trim, Bottom Door (charcoal)		Appelez-nous	-
15	W11450385		Bin, Shallow Door		Appelez-nous	-
16	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63

    View Diagram in Separate Window       Print Part List
