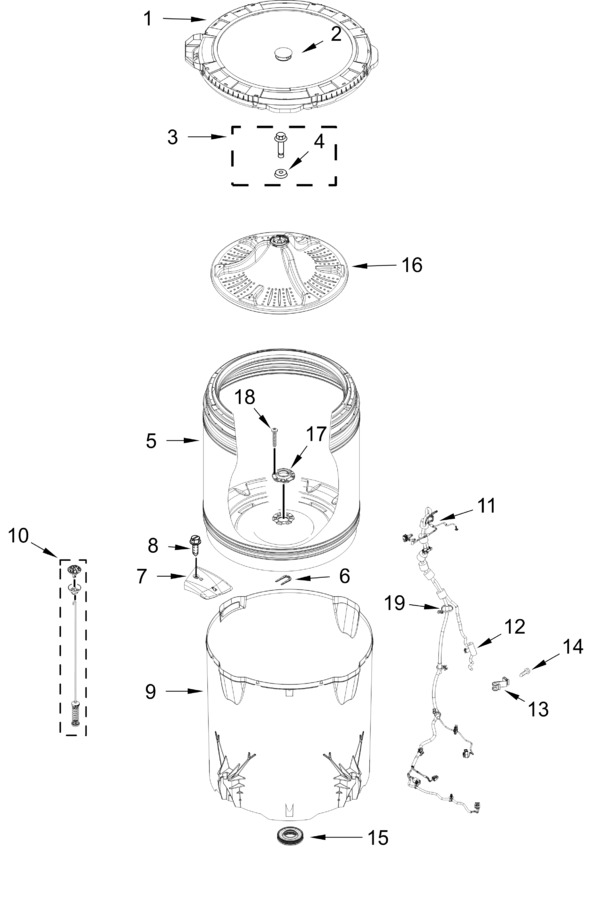

Basket And Tub Parts
Console And Water Inlet Parts
Gearcase, Motor And Pump Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11782062 | Tub Ring (Replaces: W11712570) |
|
$ 50.61 | |||||
| 2 | WPW10305259 | Cap, Impeller (Replaces: W10305259) |
|
$ 21.27 | |||||
| 3 | W10772621 | Screw And Washer (Replaces: W10003790) |
|
Immediately | $ 4.77 | ||||
| 4 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 9.98 | ||||
| 5 | W11782065 | Basket Assembly (Replaces: W11713191) |
|
$ 258.79 | |||||
| 6 | W11385424 | Retainer, Drive Block (Replaces: W11284133) |
|
Immediately | $ 11.67 | ||||
| 7 | W11782102 | Drain Pump Filter (Replaces: W11679641) |
|
- | |||||
| 8 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.43 | ||||
| 9 | W11674387 | Tub |
|
Immediately | $ 552.83 | ||||
| 10 | W11782103 | Damper Assembly, Tub Suspension (set Of 4, Includes Suspension Bushings And Suspension Balls) (Replaces: W11713299) |
|
Immediately | $ 43.25 | ||||
| 11 | W11782104 | Lower Harness (Replaces: W11729561) |
|
$ 133.83 | |||||
| 12 | W11782105 | Pressure Hose Switch (Replaces: W11732353) |
|
$ 65.46 | |||||
| 13 | W11755726 | Clip, Harness (Replaces: W11284522) |
|
Immediately | $ 6.95 | ||||
| 14 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 7.92 | ||||
| 15 | W10324647 | Seal, Tub (Replaces: W10580763) |
|
Immediately | $ 84.15 | ||||
| 16 | WPW10215115 | Impeller (washplate) (Replaces: W10215115) |
|
$ 281.99 | |||||
| 17 | W10528947 | Hub Driven Basket (Replaces: W11674590) |
|
Immediately | $ 40.16 | ||||
| 18 | WP8533953 | Screw (Replaces: 8533953) |
|
Immediately | $ 6.80 | ||||
| 19 | WPW10298887 | Cable Tie (Replaces: W10298887) |
|
$ 7.18 |
