Chassis Parts


Control Panel Parts


Cooktop Parts


Door Parts


Drawer Parts


Optional Parts (not Included)

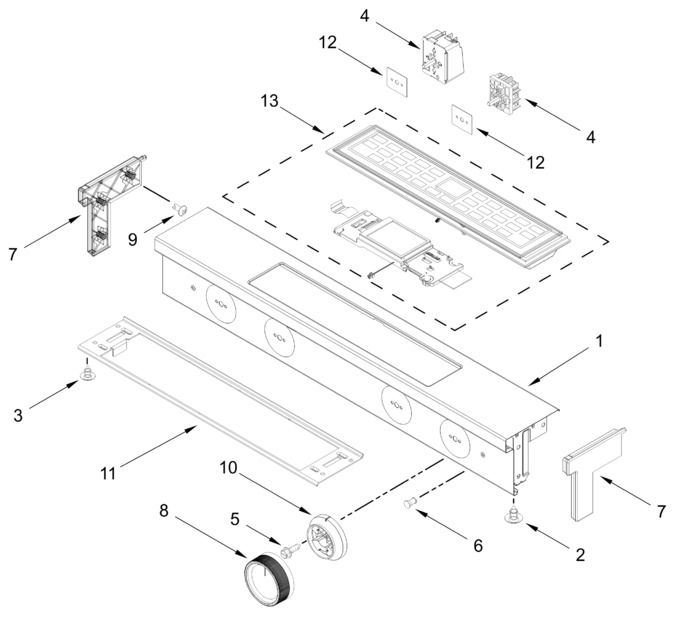

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11788980		Console (juniper)   (Replaces: W11694081)			Immediately	$ 409.15
2	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
3	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
4	W11730306		Switch, Infinite   (Replaces: W11637795)			Immediately	$ 99.91
5	W11846982		Screw   (Replaces: W10498399)				$ 11.75
6	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
7	W11784078		Panel, Manifold End Cap (juniper, Left)   (Replaces: W11351680)				$ 67.37
8	W11788977		Knob (juniper, Single)   (Replaces: W11680696)				$ 52.49
9	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 14.75
10	W11788979		Bezel (juniper)   (Replaces: W11680711)		Appelez-nous	-
11	W11747359		Mounting, Bracket   (Replaces: W11291721)		Appelez-nous	-
12	7201P07760		Gasket, Infinite Switch		Appelez-nous	-
13	W11839359		User Interface   (Replaces: W11733472)				$ 641.59
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	W10917724		Switch, Infinite   (Replaces: W10437094)			Immediately	$ 129.35
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	W10911303		Switch, Infinite   (Replaces: W10578768)			Immediately	$ 104.64
	W11129442		Switch, Infinite   (Replaces: W10437097)			Immediately	$ 100.57
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	W11788976		Knob (juniper, Triple)   (Replaces: W11680700)				$ 52.49
	W11788978		Knob (juniper, Melting)   (Replaces: W11680698)				$ 52.49
	W11788975		Knob (juniper, Dual)   (Replaces: W11680699)				$ 52.49
	W11784079		Panel, Manifold End Cap (juniper, Right)   (Replaces: W11351681)		Appelez-nous	-
