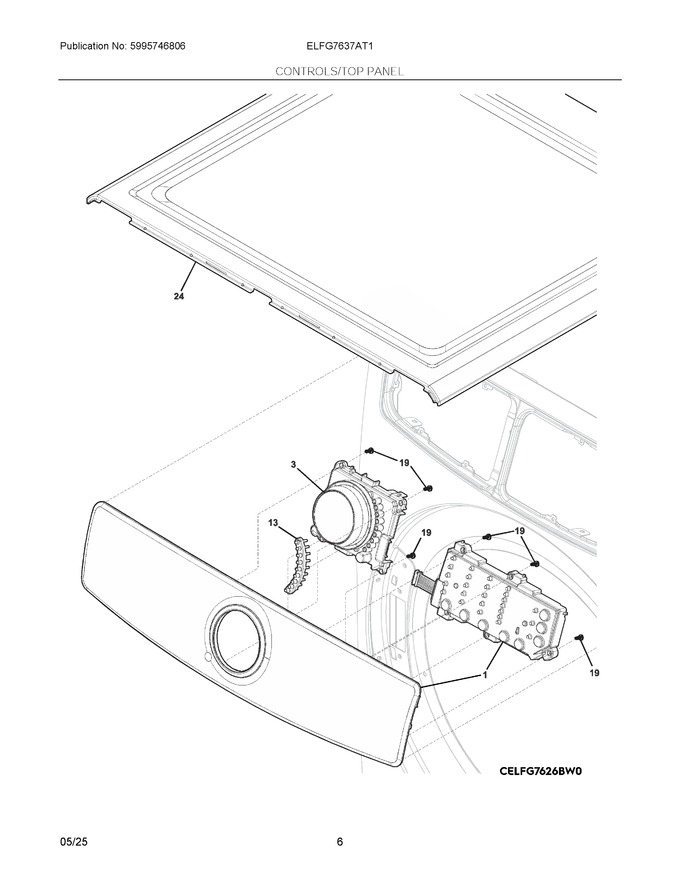

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	140009949185		Board Assembly, Ui Satellite, W/housing		Appelez-nous	-
3	140203380161		Knob Assembly, Complete, W/boards			Immediately	$ 129.94
13	5304529751		Diffuser, Light				$ 16.87
19	5304505441		Screw, Pph B, 6-20x.375				$ 7.23
24	5304505082		Work Top, Titanium   (Replaces: 5304535901)				$ 294.32
NI	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 15.75
NI	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 15.75
