SELECT A DIAGRAM

01 - Cover Sheet

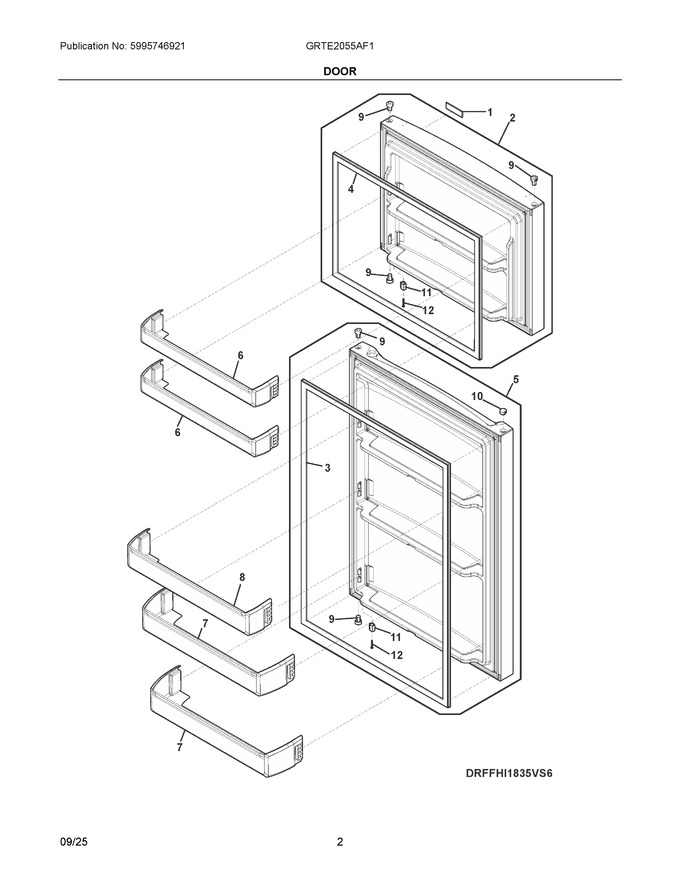

02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304512150		Nameplate, Chrome, Frig Gallery			Immediately	$ 64.61
2	5304539654		Door Assembly, Freezer, Stainless				$ 354.06
3	5304528903		Gasket, Door, Gray, Fresh Food			Immediately	$ 227.91
4	5304528904		Gasket, Door, Gray, Freezer			Immediately	$ 200.01
5	5304529919		Door Assembly, Fresh Food, Stainless, Ez Care		Appelez-nous	-
6	5304528879		Bin, Door, Freezer				$ 99.83
7	5304528877		Bin, Door, 4", Clear, Fresh Food				$ 99.83
8	140137082024		Bin, Door, 6", Clear, Fresh Food		Appelez-nous	-
9	5304522194		Bearing, Hinge, Gray			Immediately	$ 2.53
10	5304522187		Cover, Hinge Bearing, Gray			Immediately	$ 8.27
11	5304536275		Stopper, Door, Gray			Immediately	$ 4.19
12	241953905		Screw, 8-18 X 1.25			Immediately	$ 12.64

    View Diagram in Separate Window       Print Part List
