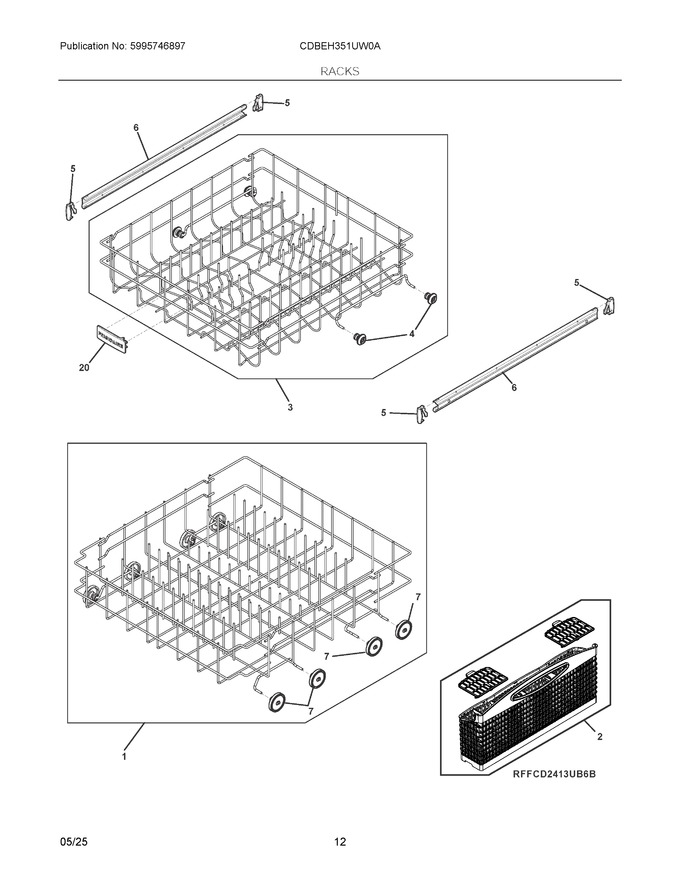

07 - Racks
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304535379 | Rack Assembly, Lower, Gray |
|
Immediately | $ 138.64 | ||||
| 2 | 5304509753 | Basket, Silverware |
|
Immediately | $ 40.97 | ||||
| 3 | 5304535380 | Rack Assembly, Upper, Gray, W/rollers |
|
Immediately | $ 167.45 | ||||
| 4 | 5304534219 | Roller, Upper Rack |
|
$ 0.92 | |||||
| 5 | 5304532200 | Cap, Rack Slide, Midnight Ink |
|
Immediately | $ 4.92 | ||||
| 6 | 5304532271 | Slide, Rack |
|
$ 56.02 | |||||
| 7 | 140054907021 | Roller, Lower, Midnight Ink |
|
- | |||||
| 20 | 5304534008 | Nameplate, Upper Rack, Midnight Ink |
|
- | |||||
| NI | 5304534218 | Bushing, Roller, Upper Rack |
|
Immediately | $ 0.68 | ||||
| NI | 154754701 | Screw, Truss Hd, 8-18 Type Ab |
|
$ 3.94 |
