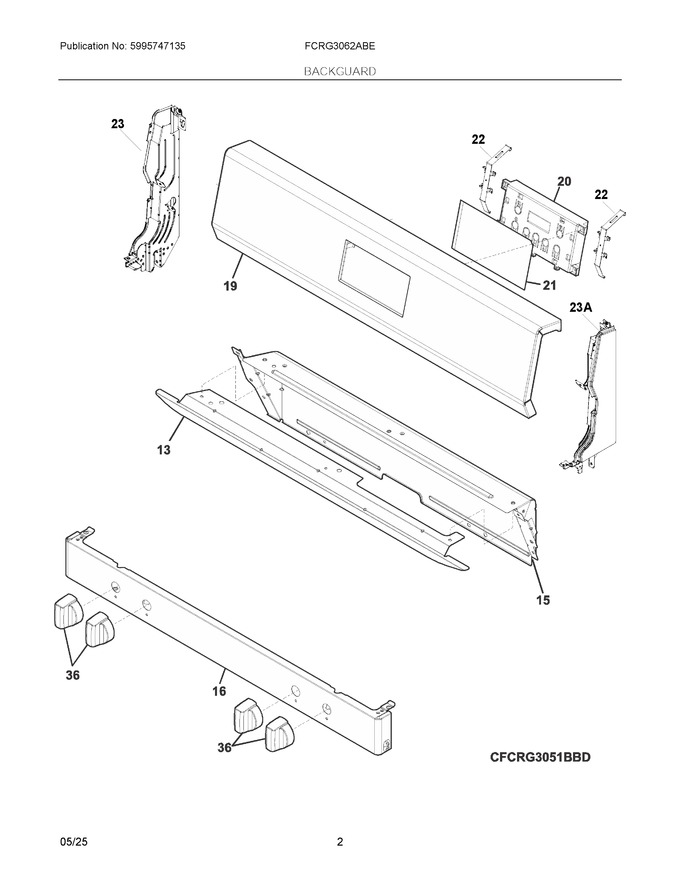

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Schematic


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	5304526526		Deflector, Flue, Black		Appelez-nous	-
15	140270581014		Shield, Backguard, Inner		Appelez-nous	-
16	5304528480		Panel, Mainfold, Black		Appelez-nous	-
19	5304534800		Panel, Backguard, Black		Appelez-nous	-
20	5304538422		Controller, Ui305, Electrical			Immediately	$ 150.37
21	5304534822		Overlay, Controller, Black, Ui305g			Immediately	$ 18.23
22	140281846018		Bracket, User Interface		Appelez-nous	-
23	140283307050		Cap, Control Panel, Lh   (Replaces: 140283307019)			Immediately	$ 34.76
36	5304507386		Knob, Top Valve, Black				$ 74.15
23A	140283307068		Cap, Control Panel, Rh   (Replaces: 140283307027)			Immediately	$ 36.65
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NI	5304536410		Standoff, Harness Clamp			Immediately	$ 2.54
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.58
NI	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
NI	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.37
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
