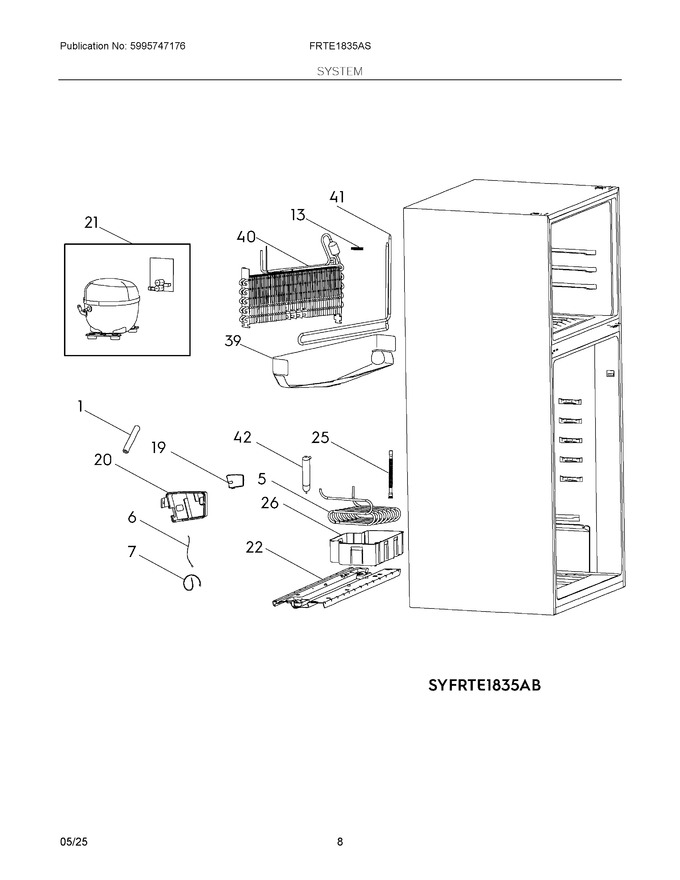

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304525382		Tube, Process   (Replaces: 5304538759)		Appelez-nous	-
5	4056015912		Condenser, Dynamic		Appelez-nous	-
6	4056015953		Harness, Wiring, Machine, Compressor		Appelez-nous	-
7	5304521528		Pipe, Suction			Immediately	$ 73.84
13	4056016084		Sensor, Temperature, Probe, Evaporator				$ 37.42
19	4056016225		Cover, Water Valve, Protection		Appelez-nous	-
20	4056016233		Housing Box, Cover, Water Valve		Appelez-nous	-
21	4056023569		Compressor, Power Board, Kit, Vfa090cy1				$ 448.91
22	4056015888		Base Assembly, Compressor				$ 67.52
25	4056023916		Pipe, Tube, Drain Extension				$ 20.39
26	4056016217		Pan, Drain		Appelez-nous	-
39	4056016068		Trough, Evaporator, Drain		Appelez-nous	-
40	4056016076		Evaporator, Assembly			Immediately	$ 128.52
41	4056016092		Heater, Defrost				$ 90.86
42	5304538760		Drier, Filter   (Replaces: 4056015938)		Appelez-nous	-
21A	4056023577		Compressor, Power Board, Kit, Dz9021c				$ 443.07
21B	4056023585		Compressor, Power Board, Kit, Vmu1113yb		Appelez-nous	-
