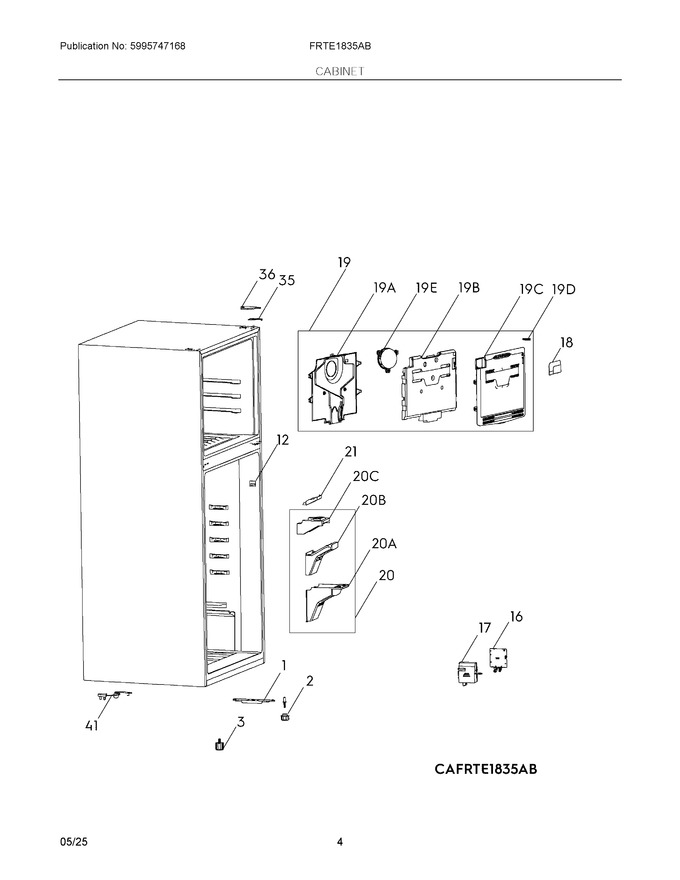

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4056015870		Hinge Door, Lower			Immediately	$ 32.42
2	4056016191		Foot Leveling, Cabinet, Black, Shorter, Adjustable			Immediately	$ 7.36
3	5304518563		Foot Leveling, Cabinet, Black, Higher, Adjustable		Appelez-nous	-
12	5304524331		Switch, Door			Immediately	$ 65.28
16	4056015979		Bracket, Main Board, Pcb				$ 6.19
17	4056015987		Cover, Installing, Main Board, Pcb		Appelez-nous	-
18	4056015573		Cover, I/m Connector		Appelez-nous	-
19	4056015532		Cover Assembly, Evaporator, Air Duct, Freezer			Immediately	$ 136.75
20	4056015839		Air Duct Assembly, Evaporator, Fresh Food				$ 58.31
21	5304518512		Trough, Water Collector				$ 60.78
35	4056015516		Hinge, Door, Upper			Immediately	$ 39.69
36	4056016126		Cover, Upper Hinge		Appelez-nous	-
41	4056015946		Power Cord, Supply, Electric			Immediately	$ 74.94
19A	4056015540		Rear Cover, Evaporator, Air Duct, Freezer		Appelez-nous	-
19B	4056015557		Seal, Evaporator, Air Duct, Freezer		Appelez-nous	-
19C	4056015565		Front Cover, Evaporator, Air Duct, Freezer		Appelez-nous	-
19D	5304521553		Sensor Temperature, Defrost, Air Duct				$ 75.71
19E	5304537968		Fan, Motor				$ 192.01
20A	4056015847		Front Cover, Air Duct, Evaporator, Fresh Food		Appelez-nous	-
20B	4056015854		Lower Foam, Evaporator, Air Duct, Fresh Food		Appelez-nous	-
20C	4056015862		Upper Foam, Evaporator, Air Duct, Fresh Food		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
