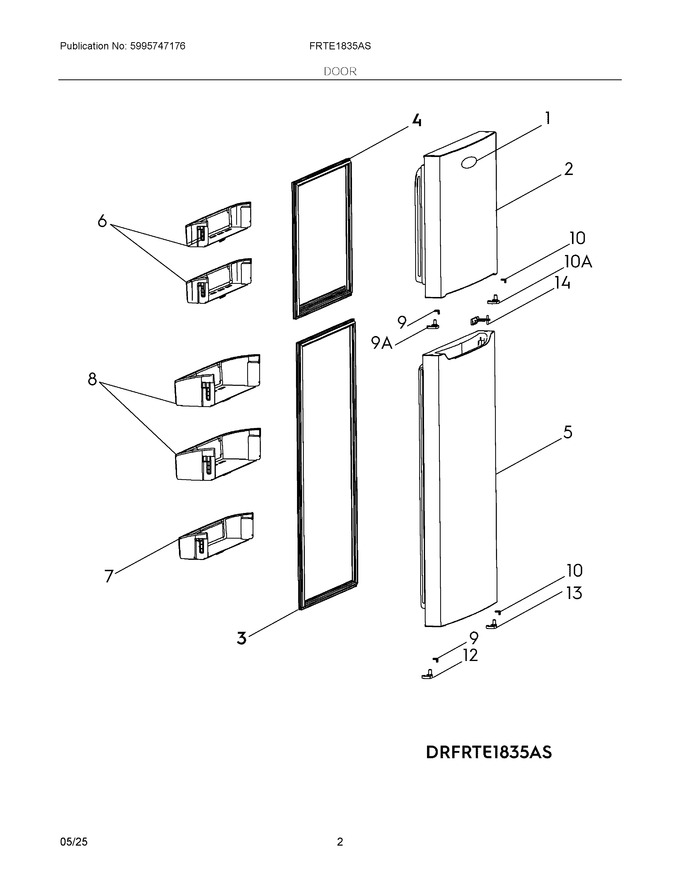

02 - Door


03 - Cabinet


04 - Shelves


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304518568		Badge, Nameplate, Stainless, Frigidaire			Immediately	$ 80.54
2	4056016324		Door Assembly, Upper, Stainless, Freezer			Immediately	$ 212.35
3	4056016175		Gasket, Lower Door, Refrigerator				$ 66.34
4	4056016134		Gasket, Upper Door, Freezer		Appelez-nous	-
5	4056016357		Door Assembly, Lower, Stainless, Refrigerator			Immediately	$ 257.75
6	4056015599		Bin Door, Freezer, Upper				$ 13.52
7	4056015722		Bin Door, Bottom, Fresh Food				$ 13.52
8	4056015607		Bin Door, Upper, Fresh Food,				$ 13.92
9	4056015631		Bearing, Hinge, Left			Immediately	$ 8.32
10	4056015656		Bearing, Hinge, Right			Immediately	$ 8.32
12	4056015680		Support, Door Closer, Left, Bottom				$ 6.61
13	4056015706		Support, Door Closer, Right, Bottom, Hook				$ 3.50
14	4056015672		Hinge, Door, Middle, Center			Immediately	$ 39.69
10A	4056015664		Hook, Door Closer, Right, Freezer				$ 3.50
9A	4056015649		Hook, Door Closer, Left, Freezer				$ 3.50
