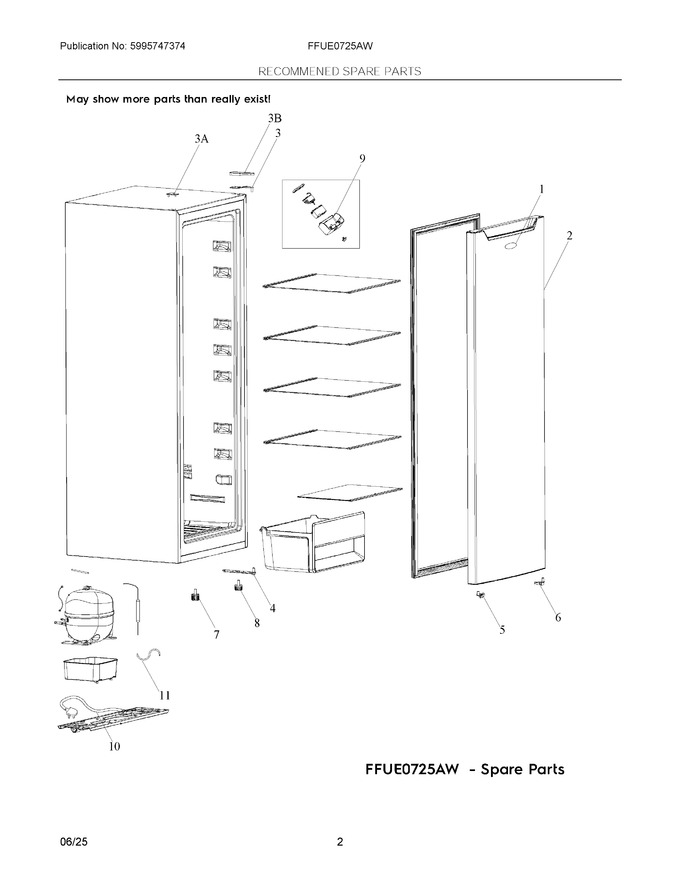

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304518572 | Badge, Nameplate, White |
|
$ 82.31 | |||||
| 2 | 5304538755 | Door Assembly, Outer, White |
|
- | |||||
| 3 | 5304538751 | Hinge Door, Upper |
|
- | |||||
| 4 | 5304538757 | Hinge Door, Lower |
|
$ 38.90 | |||||
| 5 | 5304518553 | Door Stopper, Door, Lh Door Swing |
|
$ 62.19 | |||||
| 6 | 5304518485 | Door Stopper, Rh Door Swing |
|
Immediately | $ 64.15 | ||||
| 7 | 5304518535 | Foot, Cabinet, White |
|
$ 70.23 | |||||
| 8 | 5304512833 | Foot, Adjustment |
|
- | |||||
| 9 | 5304538766 | Cover Thermostat |
|
- | |||||
| 10 | 5304533014 | Cord, Power, Electric Service |
|
Immediately | $ 111.78 | ||||
| 11 | 5304521528 | Pipe, Suction |
|
Immediately | $ 73.84 | ||||
| 3A | 5304538749 | Screw Cover, Upper Hinge |
|
- | |||||
| 3B | 5304538750 | Cover, Upper Hinge |
|
- |
