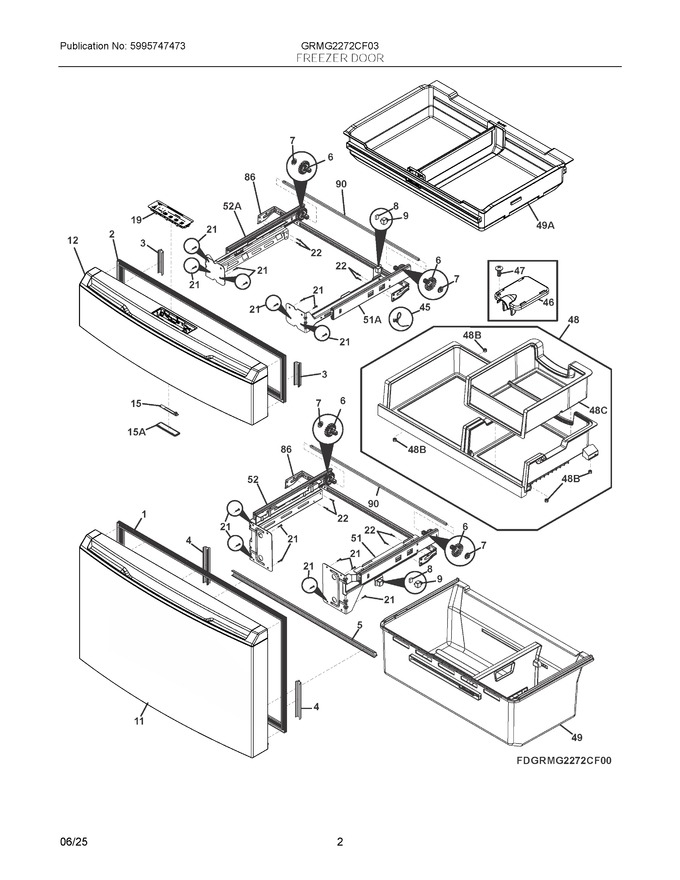

02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304519037		Gasket, Door, Freezer			Immediately	$ 59.46
2	5304519038		Gasket, Door, Middle				$ 65.38
3	5304519039		Gasket, Door, 103mm, Secondary				$ 11.81
4	5304519041		Gasket, Door, 162mm, Secondary   (Replaces: 5304519040)			Immediately	$ 28.30
5	5304519041		Gasket, Door, 754mm, Frz Bottom, Secondary			Immediately	$ 28.30
6	140025649017		Gear, Pinion   (Replaces: 5304524001)			Immediately	$ 5.09
7	5304519043		Bearing, Pad, Gear				$ 10.95
8	5304519044		Magnet, Reed Switch			Immediately	$ 21.06
9	5304535665		Support, Magnet   (Replaces: 5304519045)				$ 3.70
11	5304537398		Door Assembly, Outer, Stainless, Freezer   (Replaces: 5304529561)				$ 436.42
12	140281015739		Door Assembly, Outer, Stainless, Middle Drawer   (Replaces: 5304529562)		Appelez-nous	-
15	5304523011		Light Board, 3 Led Cluster, 6500k			Immediately	$ 54.28
19	5304529567		Display Assembly, Middle Drawer, W/pcb			Immediately	$ 176.25
21	811949401		Screw, Trilob, M5 X 16			Immediately	$ 5.90
22	5304519053		Screw, M3.5 X 6		Appelez-nous	-
45	539151026		Clip, Harness				$ 40.16
46	5304529565		Cover, Harness, Middle Drawer		Appelez-nous	-
47	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 19.01
48	5304529608		Drawer Assembly, Freezer, W/ice Container		Appelez-nous	-
49	5304519057		Basket Assembly, Freezer Drawer, W/divider				$ 224.82
51	5304519059		Slider, Assembly, Rh Freezer			Immediately	$ 271.72
52	5304519061		Slider, Assembly, Lh Freezer			Immediately	$ 270.03
86	5304536612		Bracket, Reinforcement   (Replaces: 5304519064)		Appelez-nous	-
90	5304524002		Shaft, Slider, Telescopic				$ 66.57
15A	5304526839		Lens, Single Light, White			Immediately	$ 10.11
48B	5304532074		Cushion, Rubber, Freezer Drw		Appelez-nous	-
48C	140129891077		Container, Drawer Ice, Freezer   (Replaces: 5304535269)		Appelez-nous	-
49A	5304529588		Basket Assembly, Middle Drawer, W/divider				$ 177.84
51A	5304529564		Slider, Assembly, Rh Middle Drw				$ 227.06
52A	5304529563		Slider, Assembly, Lh Middle Drw				$ 226.21
NIA	5304519084		Screw, Flange Pnhd Phl, 8g X 1/2		Appelez-nous	-
NIA	5304519066		Screw, Phil Pn Hd, M4 X 8		Appelez-nous	-
NIBA	811949503		Screw, Truss, 4.2 X 13				$ 3.37
