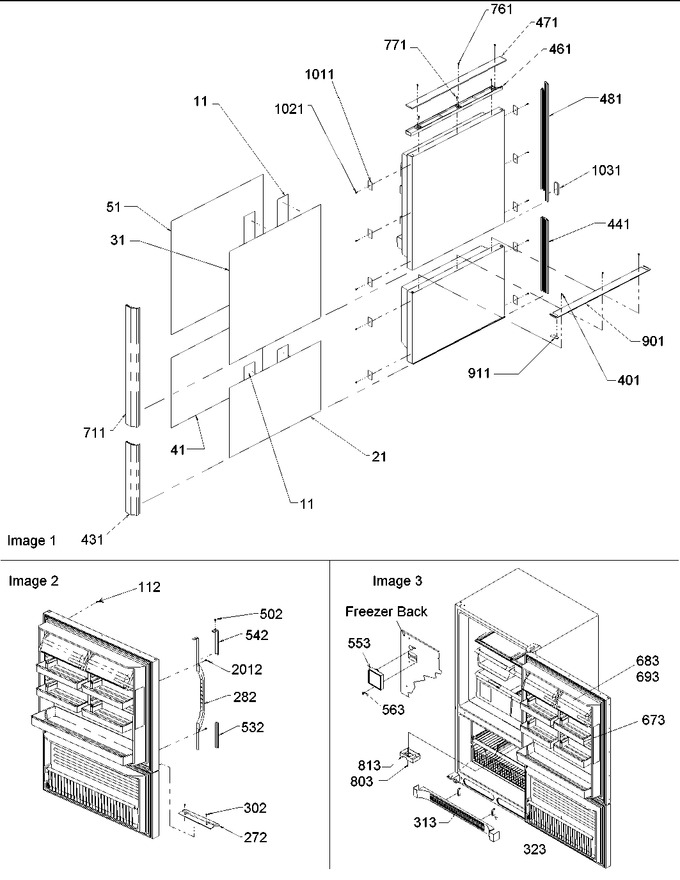

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	12315101		Clip		Appelez-nous	-
102	WP489399		Screw, Se   (Replaces: M0232929)				$ 6.95
103	12488801W		Trim,rh Cover (w)		Appelez-nous	-
313	12045101		Grille, Toe (wht)		Appelez-nous	-
323	10551502		Clip, Toe Grille				$ 5.84
401	M0229531		Screw, Sm (wht)		Appelez-nous	-
431	12500602W		Handle, Fz Dr (w)		Appelez-nous	-
441	12500504W		Trim, Vert Fz (w)		Appelez-nous	-
461	12059101		Extension, Ref Dr (wht)		Appelez-nous	-
471	12521102W		Trim, Horiz Ref Top (white)		Appelez-nous	-
481	12500501W		Trim,vert Ref (w)		Appelez-nous	-
553	D7874403		Cover-fl Tb/plug		Appelez-nous	-
563	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.95
673	10420007		Shelf, Ref Door		Appelez-nous	-
683	12163303		Door, Dairy		Appelez-nous	-
693	12163202		Shelf, Dairy		Appelez-nous	-
711	12500601W		Handle,ref Dr(white)		Appelez-nous	-
761	M0213815		Screw		Appelez-nous	-
771	WP489474		Screw 1``   (Replaces: M0211021)			Immediately	$ 7.97
803	M0216531		Screw		Appelez-nous	-
813	D7878825		Cover, Frz Cont		Appelez-nous	-
901	12521103W		Trim, Horiz Frz Top (white)		Appelez-nous	-
911	12468702		Plug, Trim (white)		Appelez-nous	-
NI	12072101		Cover-w Hinge Left		Appelez-nous	-
NI	12488802W		Trim,lh Cover (w)		Appelez-nous	-
NI	12077320		Hinge, Lh Top-e Ct		Appelez-nous	-
