SELECT A DIAGRAM

02 - Cabinet


03 - Refrigerator Liner


04 - Freezer Liner


05 - Refrigerator Door


06 - Freezer Door


07 - Unit


08 - Air Flow


09 - Control, Lit/optional

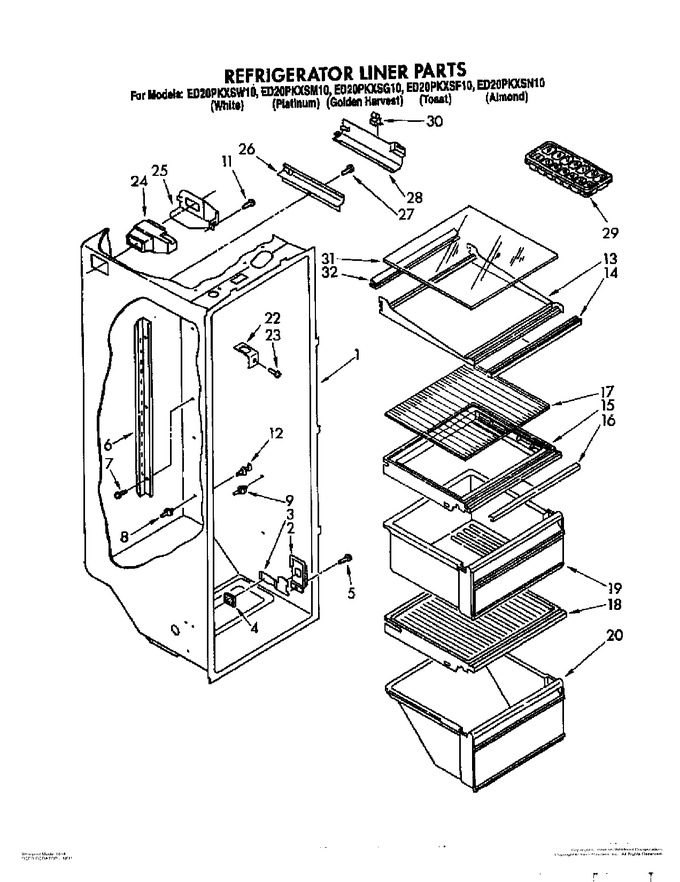

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	985468		Escutcheon, Meat Pan Control		Appelez-nous	-
3	984102		Slide, Meat Pan Control				$ 5.02
4	992358		Pad, Foam		Appelez-nous	-
5	486214		Screw 8-15 X 1/2		Appelez-nous	-
6	1108433		Ladder, Shelf (2)		Appelez-nous	-
7	WP488729		Screw, 8 X 1/2 (6)   (Replaces: 487539)			Immediately	$ 8.28
8	4388538		Stud, Rear (4)   (Replaces: 1110718)			Immediately	$ 32.85
9	WP2149540		Stud (2)   (Replaces: 1129000)				$ 10.96
11	WP489478		Screw (2)   (Replaces: 489242)				$ 8.18
12	4388538		Stud   (Replaces: 1115382)			Immediately	$ 32.85
13	1116411		Shelf, Cantilever		Appelez-nous	-
14	1114302		Trim, Shelf (3)		Appelez-nous	-
15	WP1126289		Crisper Cover   (Replaces: 1119457)				$ 190.80
16	1110795		Trim, Cover		Appelez-nous	-
17	1110794		Glass, Shelf		Appelez-nous	-
18	WP2148298		Cover, Meat Pan   (Replaces: 1114621)				$ 183.32
19	1114618		Pan, Crisper		Appelez-nous	-
20	1114619		Meat Pan		Appelez-nous	-
22	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 36.10
23	WP488488		Screw (2)   (Replaces: 489290)				$ 8.52
24	WPW10151374		Air Diffuser Assembly   (Replaces: 1121327)			Immediately	$ 104.77
25	2152019		Air Diffuser Cover   (Replaces: 1118430)				$ 90.33
26	1123925		Cover, Conduit		Appelez-nous	-
27	WP488163		Screw, 8 X 3/4   (Replaces: 488248)				$ 7.92
28	1123920		Cover, Wiring		Appelez-nous	-
29	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 47.84
30	2215823		Clip, Air Duct   (Replaces: 842534)				$ 10.94
31	1116415		Glass, Shelf		Appelez-nous	-
32	1114306		Reflector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
