SELECT A DIAGRAM

02 - Cabinet


03 - Refrigerator Liner


04 - Freezer Liner


05 - Refrigerator Door


06 - Freezer Door


07 - Unit


08 - Air Flow


09 - Control, Lit/optional

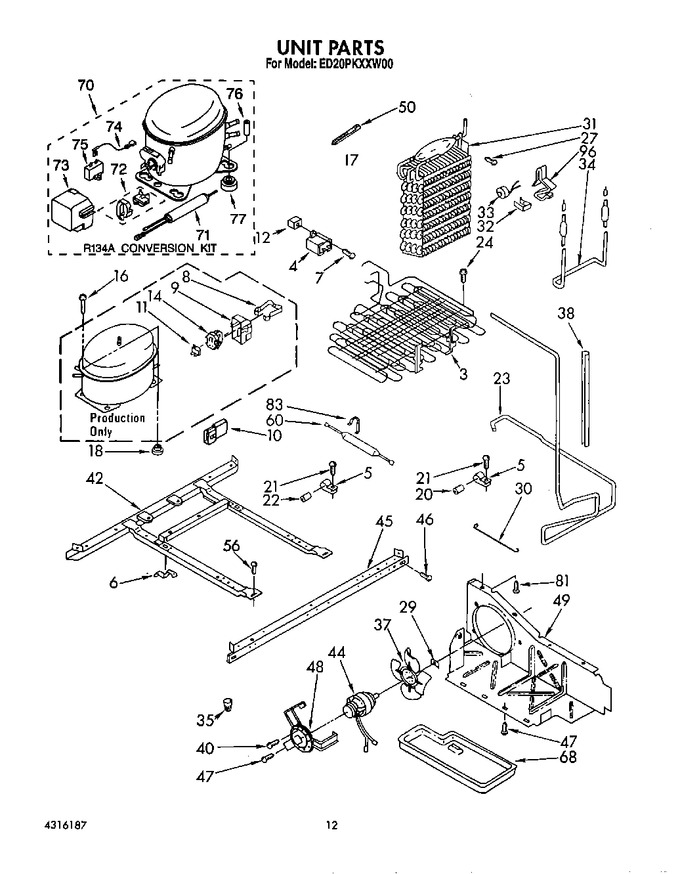

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	1127573		Condenser		Appelez-nous	-
4	WPW10662129		Capacitor   (Replaces: 1118581)			Immediately	$ 58.86
5	510716		Clamp (2)		Appelez-nous	-
6	548744		Clip (2)		Appelez-nous	-
7	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
8	938384		Strap, Cover		Appelez-nous	-
9	1108115		Cover		Appelez-nous	-
10	1118850		Housing Plug		Appelez-nous	-
11	1127582		Overload		Appelez-nous	-
12	509812		Grommet		Appelez-nous	-
14	WP2262181		Relay   (Replaces: 1108143)				$ 128.78
16	876811		Screw, 1/4-28 X 1 (4)   (Replaces: 489116)				$ 7.79
18	876811		Grommet (4)   (Replaces: 1114359)				$ 7.79
20	WP2158826		Dampener   (Replaces: 836075)				$ 1.82
21	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 22.22
22	510769		Dampener		Appelez-nous	-
23	1127577		Exchanger, Heat		Appelez-nous	-
24	488624		Screw (4)		Appelez-nous	-
27	WP489478		Screw, 8 X 1/2   (Replaces: 489242)				$ 8.18
29	WP486692		Nut, Speed   (Replaces: 486692)				$ 8.43
30	1105612		Guard, Fan				$ 42.61
31	1106987		Evaporator		Appelez-nous	-
32	513584		Clamp		Appelez-nous	-
33	WP4387499		Bimetal, Defrost   (Replaces: 2154544)				$ 126.90
34	2154542		Heater, Defrost		Appelez-nous	-
35	227991		Wire Connector		Appelez-nous	-
37	989524		Blade, Fan		Appelez-nous	-
38	1114634		Sleeve		Appelez-nous	-
40	681390		Screw, 8-32 X 3/8 (3)   (Replaces: 489019)				$ 13.71
42	1127942		Frame		Appelez-nous	-
44	833697		Motor, Fan   (Replaces: 2149963)			Immediately	$ 88.15
45	2149717		Rail, Front		Appelez-nous	-
46	489340		Screw, 5/16-18 X 5/8 (4)		Appelez-nous	-
47	488624		Screw, 8 X 3/8		Appelez-nous	-
48	548695		Bracket, Fan Motor		Appelez-nous	-
49	1127938		Air, Baffle		Appelez-nous	-
50	851095		Strap		Appelez-nous	-
56	WP489427		Screw, 1/4-28 X 1/2 (2)   (Replaces: 489339)				$ 7.84
60	W10843121		Drier   (Replaces: 1105550)			Immediately	$ 57.13
68	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
70	876765		Tube Kit			Immediately	$ 90.65
70	4388005		Compressor (includes Items 71, 72, 73, 74, 75, 76, & 77) (also Order		Appelez-nous	-
71	W10843121		Drier   (Replaces: 4387019)			Immediately	$ 57.13
72	4387535		Overload/relay Asy   (Replaces: 4387767)				$ 191.05
73	WP2162358		Cover, Terminal   (Replaces: 4387731)				$ 95.29
74	WP2172890		Wire, Capacitor   (Replaces: 2172890)				$ 8.51
75	WP4387764		Capacitor   (Replaces: 4387764)				$ 185.89
76	4387559		Sleeve		Appelez-nous	-
77	WP4387558		Grommet   (Replaces: 4387558)				$ 7.30
81	489050		Screw, 8-32 X 1/2				$ 692.56
83	1127590		Clamp, Dryer		Appelez-nous	-
96	978026		Valve, Access (5/16``)			Immediately	$ 134.49
96	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
96	978028		Valve, Access (1/2)		Appelez-nous	-
96	978029		Valve Access (5/8``)				$ 93.85
96	978030		Valve, Access (3/4``)				$ 137.25
96	876764		Valve, Access(3/16``)			Immediately	$ 95.92
96	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
96	1108431		Clamp (4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
