01 - Cover

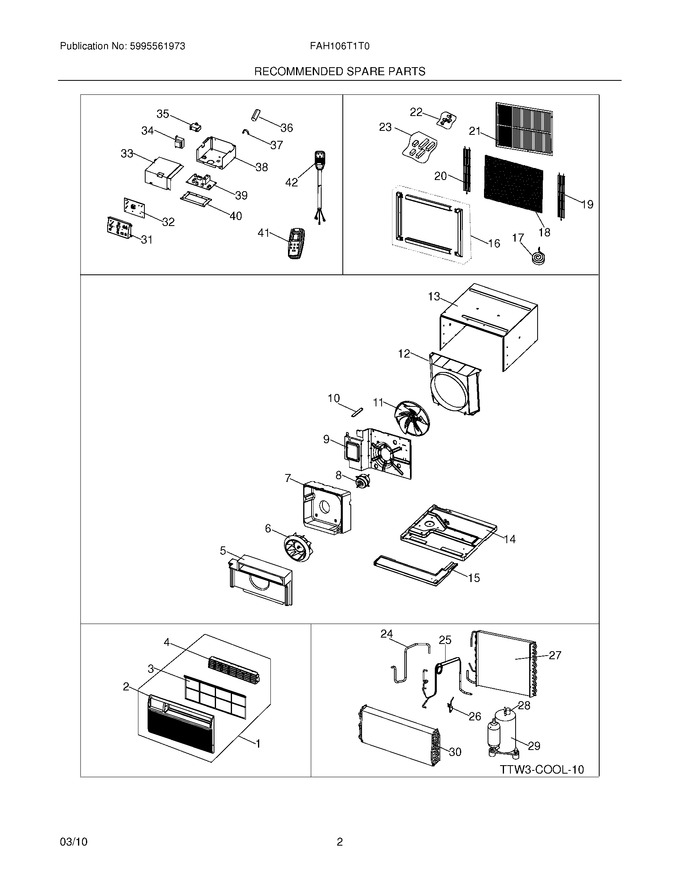

03 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304470949 | Panel,front Grille |
|
$ 151.41 | |||||
| 5 | 5304476438 | Scroll,blower Housing ,front |
|
- | |||||
| 7 | 5304476439 | Scroll,blower Housing ,rear |
|
- | |||||
| 9 | 5304470964 | Bulkhead,air System |
|
- | |||||
| 10 | 5304470965 | Rod,connecting Link |
|
- | |||||
| 12 | 5304470970 | Shroud,fan Housing ,condenser |
|
- | |||||
| 13 | 5304476608 | Cabinet,wrapper/sleeve |
|
$ 208.53 | |||||
| 14 | 5304476609 | Base,unit Chassis |
|
- | |||||
| 15 | 5304470961 | Tray,drip Pan |
|
- | |||||
| 16 | 5304470973 | Trim,frame ,top/bottom/side |
|
$ 184.17 | |||||
| 17 | 5304470974 | Seal,stuffer ,foam ,wall/sleeve |
|
- | |||||
| 18 | 5304470975 | Grille,plastic ,rear |
|
- | |||||
| 19 | 5304477004 | Grille,air Inlet ,right Rear |
|
- | |||||
| 20 | 5304470976 | Grille,air Inlet ,left Rear |
|
- | |||||
| 21 | 5304470977 | Grille,sleeve ,aluminum ,rear |
|
- | |||||
| 22 | 5304470978 | Fastener Kit,rear Grille ,screws |
|
- | |||||
| 23 | 5304470979 | Seal & Spacer Kit |
|
- | |||||
| 33 | 5304476448 | Cover,control Box |
|
- | |||||
| 37 | 5304476616 | Strap,capacitor Clamp |
|
- | |||||
| 38 | 5304476617 | Control Box |
|
- | |||||
| 40 | 5304476251 | Holder,mounting Plate ,control |
|
- | |||||
| F1 | 5304471190 | Front Assembly,complete Panel |
|
- | |||||
| F11 | 5304470971 | Fan Blade |
|
$ 82.41 | |||||
| F24 | 5304476443 | Tube,discharge |
|
- | |||||
| F25 | 5304476610 | Tube,capillary |
|
- | |||||
| F26 | 5304476367 | Drier-filter |
|
$ 45.55 | |||||
| F27 | 5304476611 | Condenser |
|
- | |||||
| F28 | 5304476612 | Overload Protector |
|
$ 159.41 | |||||
| F29 | 5304476613 | Compressor,w/overload |
|
$ 464.26 | |||||
| F3 | 5304528926 | Filter,air (Replaces: 5304470951) |
|
$ 17.35 | |||||
| F30 | 5304476614 | Evaporator,with Cap Tube |
|
- | |||||
| F31 | 5304471196 | Control Panel,with Overlay |
|
- | |||||
| F32 | 5304537405 | Pc Board,display/input (Replaces: 5304471197) |
|
$ 47.54 | |||||
| F34 | 5304470989 | Transformer |
|
$ 94.98 | |||||
| F35 | 5304471221 | Capacitor,fan Motor |
|
- | |||||
| F36 | 4055426367 | Capacitor,compressor (Replaces: 5304471214) |
|
- | |||||
| F39 | 5304476450 | Pc Board,control ,main |
|
$ 188.58 | |||||
| F4 | 5304476607 | Louver,horizontal |
|
- | |||||
| F41 | 5304476618 | Remote Control,transmitter |
|
- | |||||
| F42 | 5304476619 | Power Cord,electric ,lcdi |
|
$ 167.79 | |||||
| F6 | 5304471193 | Blower Wheel,centrifugal Fan |
|
$ 85.05 | |||||
| F8 | 5304475744 | Motor,fan |
|
$ 343.61 |
