SELECT A DIAGRAM

02 - Cabinet


03 - Refrigerator Liner

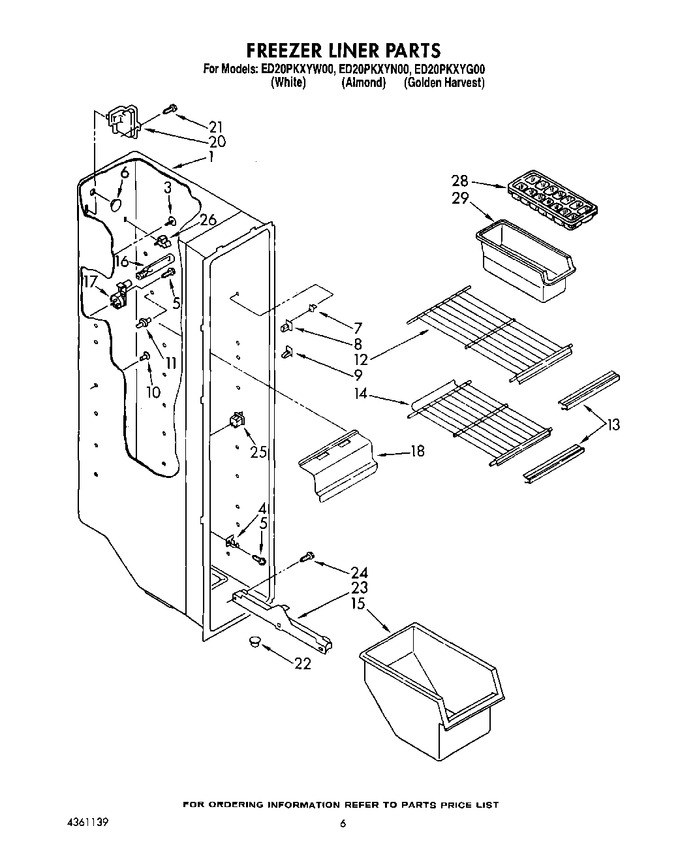

04 - Freezer Liner


05 - Refrigerator Door


06 - Freezer Door


07 - Unit


08 - Air Flow


09 - Control, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
3	WP941839		Hole Plug (2)   (Replaces: 941839)				$ 7.65
3	944795		Hole Plug (2)		Appelez-nous	-
4	1108436		Evaporator, Support		Appelez-nous	-
5	WP489478		Screw, 8 X 1/2   (Replaces: 489242)				$ 7.75
6	655411		Hole Plug		Appelez-nous	-
7	946355		Support, Stud (16)		Appelez-nous	-
8	946356		Stud (5)		Appelez-nous	-
9	1106982		Stud (5)		Appelez-nous	-
10	1110779		Grommet (16)		Appelez-nous	-
11	4388538		Stud (4)   (Replaces: 1110718)			Immediately	$ 32.85
12	1106979		Shelf (2)		Appelez-nous	-
13	1110782		Trim Shelf		Appelez-nous	-
14	1106980		Shelf (3)		Appelez-nous	-
15	2148194		Bin, Freezer		Appelez-nous	-
16	WP548049		Light Bulb   (Replaces: 548049)				$ 86.35
17	1108630		Socket Assembly		Appelez-nous	-
18	1108445		Lens, Light		Appelez-nous	-
20	1129915		Cover, Wiring		Appelez-nous	-
21	WP488729		Screw   (Replaces: 489176)			Immediately	$ 7.79
22	942768		Fitting, Drain		Appelez-nous	-
23	1115383		Slide, Freezer Bin (2) (l.s.)		Appelez-nous	-
23	W10845583		Slide, Freezer Bin (2) (r.s.)   (Replaces: 1119293)				$ 123.92
24	487979		Screw (4) (l.s.)		Appelez-nous	-
24	718257		Screw (4) (r.s.)   (Replaces: 489100)		Appelez-nous	-
25	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 37.23
26	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
28	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 45.56
29	WP982704		Container (white)   (Replaces: 1116917)				$ 31.00
29	WP982704		Container (haze)   (Replaces: 2148079)				$ 31.00

    View Diagram in Separate Window       Print Part List
