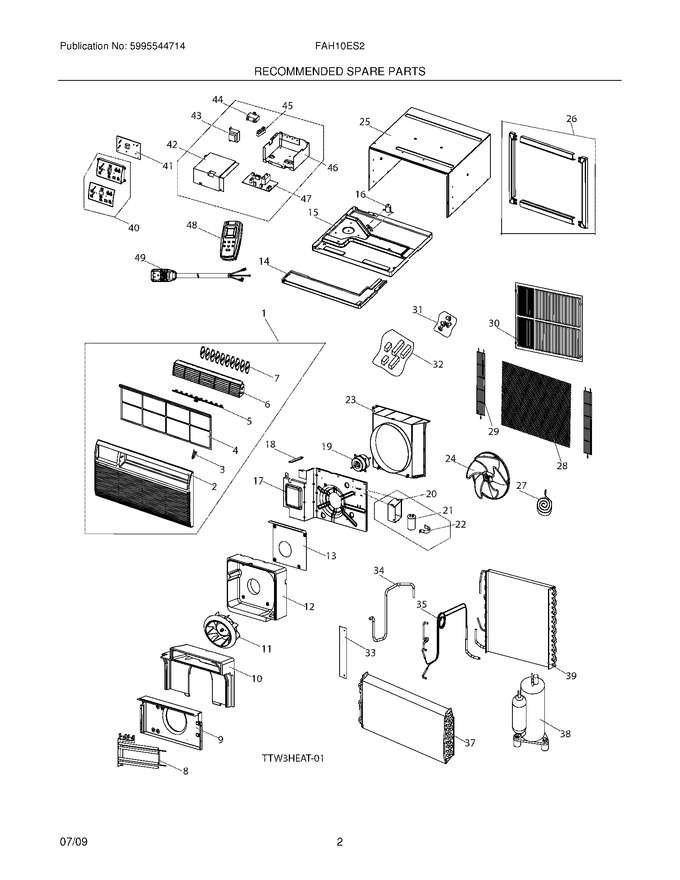

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304470949 | Panel,front Grille |
|
$ 151.41 | |||||
| 3 | 5304470950 | Guide,air Filter |
|
- | |||||
| 5 | 5304470952 | Link,vertical Louver |
|
- | |||||
| 9 | 5304470956 | Panel,heater Support ,housing |
|
- | |||||
| 10 | 5304470957 | Scroll,blower Housing ,front |
|
- | |||||
| 12 | 5304470959 | Scroll,blower Housing ,rear |
|
- | |||||
| 13 | 5304470960 | Baffle,thermal ,rear Scroll |
|
- | |||||
| 14 | 5304470961 | Tray,drip Pan |
|
- | |||||
| 15 | 5304471047 | Base,unit Chassis |
|
- | |||||
| 17 | 5304470964 | Bulkhead,air System |
|
- | |||||
| 18 | 5304470965 | Rod,connecting Link |
|
- | |||||
| 20 | 5304470967 | Box,capacitor |
|
- | |||||
| 22 | 5304470969 | Strap,capacitor Clamp |
|
- | |||||
| 23 | 5304470970 | Shroud,fan Housing ,condenser |
|
- | |||||
| 25 | 5304470972 | Cabinet,wrapper/sleeve |
|
- | |||||
| 26 | 5304470973 | Trim,frame ,top/bottom/side |
|
$ 184.17 | |||||
| 27 | 5304470974 | Seal,stuffer ,foam ,wall/sleeve |
|
- | |||||
| 28 | 5304470975 | Grille,plastic ,rear |
|
- | |||||
| 29 | 5304470976 | Grille,air Inlet ,rear |
|
- | |||||
| 30 | 5304470977 | Grille,sleeve ,aluminum ,rear |
|
- | |||||
| 31 | 5304470978 | Fastener Kit,rear Grille ,screws |
|
- | |||||
| 32 | 5304470979 | Seal & Spacer Kit |
|
- | |||||
| 33 | 5304470980 | Spacer,power Cord |
|
- | |||||
| 40 | 5304470986 | Control Panel,with Overlay |
|
- | |||||
| 42 | 5304470988 | Cover,control Box |
|
- | |||||
| 46 | 5304470992 | Control Box |
|
- | |||||
| F1 | 5304470948 | Front Assembly,complete Panel |
|
- | |||||
| F11 | 5304470958 | Blower Wheel,centrifugal Fan |
|
- | |||||
| F16 | 5304470963 | Valve,drain |
|
- | |||||
| F19 | 5304471048 | Motor,fan |
|
- | |||||
| F21 | 5304471049 | Capacitor |
|
- | |||||
| F24 | 5304470971 | Fan Blade |
|
$ 82.41 | |||||
| F34 | 5304471050 | Tube,discharge |
|
- | |||||
| F35 | 5304471057 | Tube,capillary |
|
- | |||||
| F37 | 5304471053 | Evaporator |
|
- | |||||
| F38 | 5304471054 | Compressor |
|
- | |||||
| F39 | 5304471062 | Condenser |
|
- | |||||
| F4 | 5304528926 | Filter,air (Replaces: 5304470951) |
|
$ 17.35 | |||||
| F41 | 5304470987 | Pc Board,display/input |
|
- | |||||
| F43 | 5304535831 | Transformer (Replaces: 5304471063) |
|
- | |||||
| F44 | 5304471064 | Capacitor,fan Motor |
|
- | |||||
| F45 | 5304470991 | Terminal Block |
|
- | |||||
| F47 | 5304471065 | Pc Board,control ,main |
|
- | |||||
| F48 | 5304470994 | Remote Control,transmitter |
|
- | |||||
| F49 | 5304471066 | Power Cord,electric ,lcdi |
|
- | |||||
| F6 | 5304470953 | Louver,horizontal |
|
- | |||||
| F7 | 5304470954 | Louver,vertical |
|
- | |||||
| F8 | 5304471046 | Heater,electric |
|
- |
