SELECT A DIAGRAM

01 - Cover


03 - Cabinet/front/controls

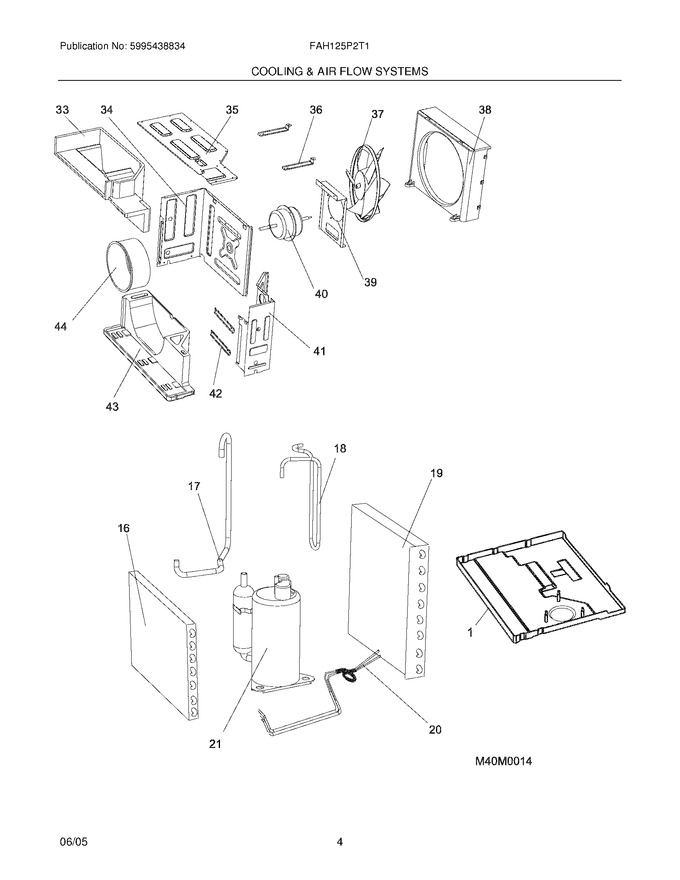

05 - Cooling & Air Flow Systems


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304448055		Base,unit Chassis		Appelez-nous	-
33	5304448015		Scroll,blower Housing ,top		Appelez-nous	-
34	5304448016		Bulkhead,panel ,left Side		Appelez-nous	-
35	5304448018		Cover,blower Scroll ,top Plate		Appelez-nous	-
36	5304448040		Bar,linkage		Appelez-nous	-
39	5304448043		Bracket,fan Motor Mount		Appelez-nous	-
41	5304448017		Bulkhead,panel ,right Side		Appelez-nous	-
42	5304448045		Plate,linkage		Appelez-nous	-
43	5304448046		Scroll,blower Housing ,bottom		Appelez-nous	-
F16	5304448061		Evaporator		Appelez-nous	-
F17	5304448063		Suction Tube		Appelez-nous	-
F18	5304448065		Discharge Tube		Appelez-nous	-
F19	5304448003		Condenser		Appelez-nous	-
F20	5304448070		Capillary Tube		Appelez-nous	-
F21	5304448071		Compressor Assembly,w/electricals ,drier,grommets		Appelez-nous	-
F37	5304448041		Fan Blade,axial Flow				$ 85.59
F38	5304448042		Shroud,fan Housing		Appelez-nous	-
F40	5304448075		Motor,fan		Appelez-nous	-
F44	5304448047		Blower Wheel,centrifugal Fan		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
