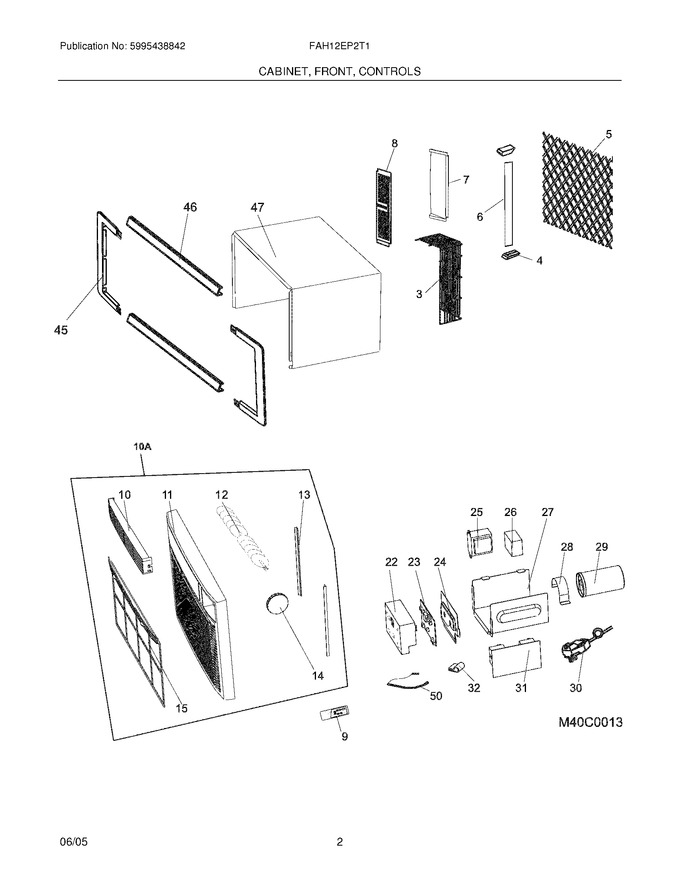

03 - Cabinet/front/controls
05 - Cooling & Air Flow Systems
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5304447987 | Grille,air Intake ,side |
|
- | |||||
| 4 | 5304447988 | Block,spacer Support ,(2) |
|
- | |||||
| 5 | 5304447989 | Screen,grille ,plastic Mesh ,rear |
|
- | |||||
| 6 | 5304447990 | Spacer,sleeve Baffle ,tapered |
|
- | |||||
| 7 | 5304447991 | Panel,rear Grille ,plastic |
|
- | |||||
| 8 | 5304447992 | Grille,steel ,rear |
|
- | |||||
| 10 | 5304447994 | · Louver,horizontal |
|
- | |||||
| 11 | 5304447995 | · Panel,grille ,front |
|
$ 161.75 | |||||
| 12 | 5304447996 | · Louver,vertical |
|
- | |||||
| 13 | 5304447997 | · Bracket,air Filter Mt. |
|
- | |||||
| 14 | 5304447998 | · Dial,adjuster Wheel ,louver |
|
- | |||||
| 15 | 5304447999 | · Filter,air ,plastic Frame |
|
- | |||||
| 22 | 5304448006 | Console,control Cover |
|
- | |||||
| 24 | 5304448008 | Cover,control Box ,front Plate |
|
- | |||||
| 27 | 5304448010 | Control Box |
|
- | |||||
| 28 | 5304447808 | Strap,capacitor Mtg. |
|
- | |||||
| 32 | 5304447802 | Clip,cable Clamp |
|
- | |||||
| 45 | 5304448048 | Trim,window Frame ,vertical |
|
- | |||||
| 46 | 5304448049 | Trim,window Frame ,horizontal |
|
- | |||||
| 47 | 5304448050 | Cabinet,wrapper/sleeve |
|
- | |||||
| 10A | 5304448486 | Front Assembly,complete Panel ,includes 10,11,12,13,14,15 |
|
- | |||||
| F23 | 5304448057 | Pc Board,display/input |
|
- | |||||
| F25 | 5304447937 | Transformer |
|
- | |||||
| F26 | 5304448072 | Capacitor,fan Motor |
|
- | |||||
| F29 | 5304448073 | Capacitor,run |
|
- | |||||
| F30 | 5304448074 | Power Cord,lcdi ,with Test/reset |
|
- | |||||
| F31 | 5304448076 | Pc Board,control/power |
|
- | |||||
| F50 | 5304448125 | Thermistor,temp Sensor ,indoor |
|
$ 47.46 | |||||
| F9 | 5304447993 | Remote Control,transmitter |
|
$ 100.70 |
