01 - Cover Sheet


02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor

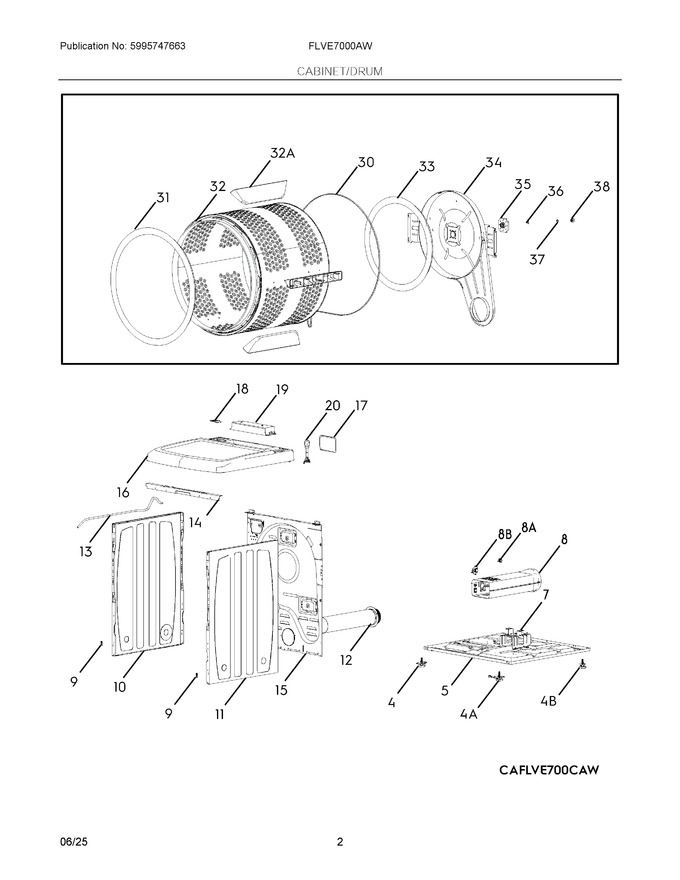

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5304538522		Foot Assembly, Adjustable				$ 9.28
5	5304538527		Base Assembly, Cabinet		Appelez-nous	-
7	5304538520		Support, Heater				$ 12.30
8	5304538523		Heater				$ 229.39
9	5304511376		Pin, Front Panel				$ 8.68
10	5304538512		Panel, Side, White, Left		Appelez-nous	-
11	5304538506		Panel, Side, White, Right		Appelez-nous	-
12	5304538039		Vent Pipe, Assembly, Rear		Appelez-nous	-
13	4056035068		Wire, Assembly   (Replaces: 5304538504)				$ 130.08
14	5304511390		Rail, Top, Front		Appelez-nous	-
15	5304538505		Cover Assembly, Back, Rear		Appelez-nous	-
16	5304538511		Top Cover, White		Appelez-nous	-
17	5304538509		Cover, Power Cord		Appelez-nous	-
18	5304511385		Cover, Hole, Line Speed		Appelez-nous	-
19	5304538516		Cover, Control Board				$ 139.19
20	5304538503		Power Cord				$ 163.64
30	5304511380		Belt, Drum				$ 42.98
31	5304511391		Felt Seal, Drum, Front				$ 89.06
32	5304538513		Drum Assembly, Basket		Appelez-nous	-
33	5304511393		Felt Seal, Drum, Rear				$ 62.66
34	5304538514		Duct Assembly, Drum Heating, Rear		Appelez-nous	-
35	5304511395		Bearing House, Assembly				$ 91.76
36	5304511396		Nut				$ 7.37
37	5304538515		Washer		Appelez-nous	-
38	5304538518		Washer		Appelez-nous	-
32A	5304538517		Baffle		Appelez-nous	-
4A	5304538529		Foot Assembly, Adjustable		Appelez-nous	-
4B	5304538528		Foot Assembly, Adjustable				$ 8.14
8A	5304511444		Thermostat				$ 54.46
8B	5304538519		Thermostat, Blower Housing		Appelez-nous	-
