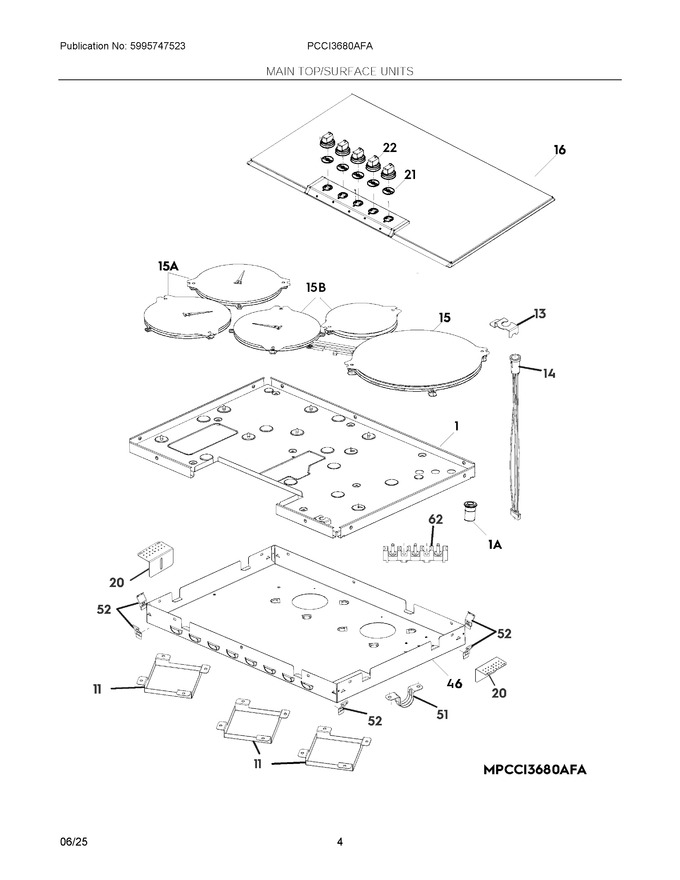

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304538006		Coil Carrier, 36		Appelez-nous	-
11	5304506079		Deflector, Air		Appelez-nous	-
13	5304506080		Bracket, Indicator Light		Appelez-nous	-
14	5304506081		Light, Indicator				$ 43.82
15	5304537998		Induction Coil, 280mm			Immediately	$ 217.98
16	5304538009		Maintop, Assembly, Glass				$ 891.56
20	5304538915		Bracket, Retainer, Granite Install   (Replaces: 5304522712)			Immediately	$ 6.01
21	5304538002		Gasket, Knob		Appelez-nous	-
22	5304538003		Knob Assembly, Maintop				$ 86.66
46	5304538004		Burner Box		Appelez-nous	-
51	318389600		Bracket, Conduit Mtg.				$ 14.18
52	387174602		Bracket, Spring, Cooktop Mtg.				$ 6.30
62	5304535277		Terminal Block			Immediately	$ 4.40
15A	357226370		Element, Induction Coil, 180 Mm			Immediately	$ 131.23
15B	357226271		Element, Induction Coil, 140 Mm				$ 153.13
1A	5304537997		Spacer, Coil Carrier		Appelez-nous	-
NI	202855101		Holder, Cable				$ 1.58
NI	5304462994		Screw, 8-32 X 5/16		Appelez-nous	-
NI	305309704		Screw, St, 4.2 : 12, (9)		Appelez-nous	-
NI	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.73
NIA	131202300		Screw, 8 X 5/8   (Replaces: 3131048)			Immediately	$ 14.96
NIA	305309608		Screw, M4		Appelez-nous	-
NIB	5303307980		Screw, 8-32 X 0.437, (4)			Immediately	$ 15.75
NIB	305376201		Nut, Terminal Block, (2)		Appelez-nous	-
NIC	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
