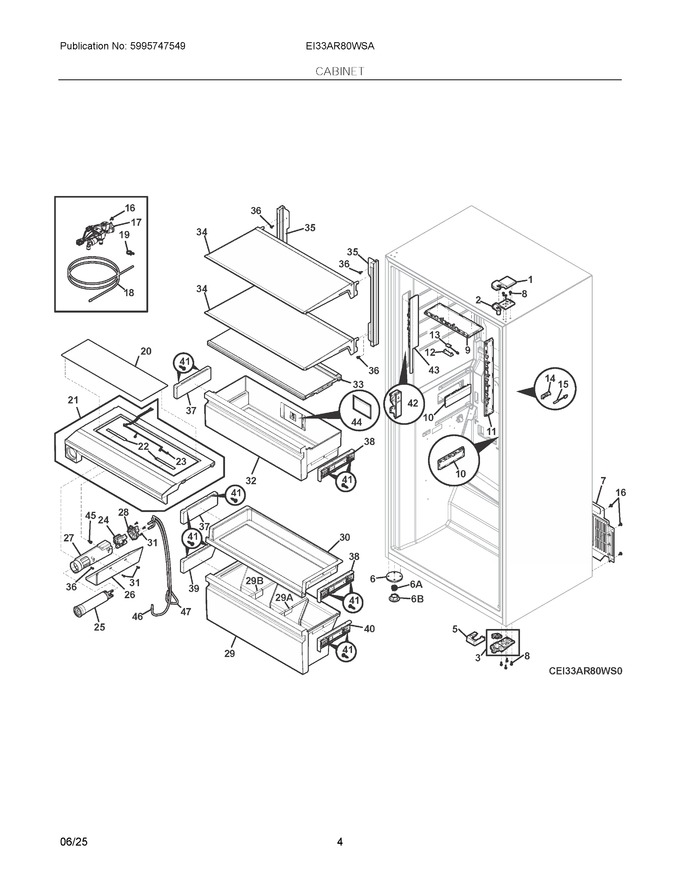

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304524638 | Cover, Hinge, Stainless, Rh Upper |
|
$ 12.05 | |||||
| 2 | 5304524636 | Hinge, Door, Rh Upper |
|
$ 269.54 | |||||
| 3 | 5304525238 | Hinge Assembly, Lower, Rh |
|
Immediately | $ 72.31 | ||||
| 4 | 5304525238 | Bearing Assembly, Lower Hinge, Rh, W/stop (Replaces: 5304525236) |
|
Immediately | $ 72.31 | ||||
| 5 | 5304525237 | Cover, Hinge, Rh Lower |
|
$ 12.41 | |||||
| 6 | 5304528813 | Base, Leveler Leg, Front |
|
Immediately | $ 17.23 | ||||
| 7 | 5304525858 | Cover, Access, Machine Compt. |
|
$ 61.86 | |||||
| 8 | 5304522279 | Screw, Hex Wsh Hd Quad, M5 X 16 |
|
Immediately | $ 3.42 | ||||
| 9 | 5304536788 | Light Assembly, Led, 2x Upper, W/lens, Pcb |
|
$ 59.49 | |||||
| 10 | 5304533304 | Light Assembly, Led, 1x, Single, Pcb, Harn, W/lens |
|
$ 48.76 | |||||
| 11 | 5304536789 | Light Assembly, Led, 3x, W/lens, Pcb, Harness |
|
- | |||||
| 12 | 5304524762 | Cover, Reed Switch, Grey |
|
$ 10.75 | |||||
| 13 | 5304527992 | Switch, Reed (Replaces: 242326001) |
|
Immediately | $ 90.77 | ||||
| 14 | 5304524760 | Cover, Sensor, Grey |
|
$ 10.45 | |||||
| 15 | 5303918775 | Thermistor Kit, Temperature, Ntc, W/connectors |
|
Immediately | $ 26.38 | ||||
| 16 | 241500305 | Screw, Hex Washer Head, 8-18ab X 0.625 (Replaces: 241500304) |
|
$ 3.37 | |||||
| 17 | 5304524756 | Valve, Water, Triple Solenoid |
|
Immediately | $ 155.25 | ||||
| 18 | 5304528820 | Tube, Water, Dispenser |
|
Immediately | $ 52.78 | ||||
| 19 | 5304528819 | Clamp, Dispenser Tube, 7/16 |
|
$ 10.95 | |||||
| 20 | 5304524780 | Glass, Control Cover (Replaces: 5304524781) |
|
$ 114.87 | |||||
| 21 | 5304524716 | Control Panel, Assembly, W/light-ui Pcb |
|
Immediately | $ 363.44 | ||||
| 22 | 5304524650 | Pc Board, Led Cluster, Polaris |
|
Immediately | $ 62.36 | ||||
| 23 | 5304524766 | Harness, Jumper, Led |
|
$ 12.29 | |||||
| 24 | 140156010054 | Manifold, Water Filter (Replaces: 5304524817) |
|
Immediately | $ 33.97 | ||||
| 25 | EPPWFU01 | Elect Purepour, Wf-1, Water Filter |
|
Immediately | $ 128.71 | ||||
| 26 | 5304524749 | Cover, Water Filter |
|
$ 28.12 | |||||
| 27 | 5304524838 | Bracket, Water Filter |
|
Immediately | $ 23.59 | ||||
| 28 | 5304524840 | Support, Water Filter |
|
$ 14.46 | |||||
| 29 | 5304524710 | Drawer Assembly, Full Width, Lower, W/dividers |
|
$ 269.60 | |||||
| 30 | 5304524707 | Shelf Assembly, Slide Out, W/glass |
|
$ 203.07 | |||||
| 31 | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50 (Replaces: 241953901) |
|
Immediately | $ 17.69 | ||||
| 32 | 5304524703 | Drawer Assembly, Upper, W/trim |
|
$ 234.29 | |||||
| 33 | 5304528817 | Crisper Cover, Assembly, W/glass-gasket |
|
$ 192.67 | |||||
| 34 | 5304524670 | Shelf Assembly, Glass, W/trim |
|
$ 211.50 | |||||
| 35 | 140171013042 | Rail, Shelf, Support, Assembly |
|
- | |||||
| 36 | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.37 | ||||
| 37 | 5304524854 | Slide Assembly, 9 Inch, Grey, Lh |
|
$ 89.17 | |||||
| 38 | 5304524853 | Slide Assembly, 9 Inch, Grey, Rh |
|
$ 93.18 | |||||
| 39 | 5304524856 | Slide Assembly, 8 Inch, Grey, Lh |
|
$ 89.17 | |||||
| 40 | 5304524855 | Slide Assembly, 8 Inch, Grey, Rh |
|
$ 85.14 | |||||
| 41 | 5304524845 | Screw, Quad Hilo, 4.2x1.41x15.9, Slide Mtg |
|
Immediately | $ 3.21 | ||||
| 42 | 140129367060 | Dispenser, Assembly, Water, W/switches (Replaces: 5304524692) |
|
- | |||||
| 43 | 5304536790 | Light Assembly, Led, Dispenser |
|
- | |||||
| 44 | 5304524705 | Absorber, Ethylene |
|
- | |||||
| 45 | 5304525288 | Screw, Shoulder, M4.2 Hi-lo Qdrx |
|
$ 2.53 | |||||
| 46 | 5304539694 | Hose, Filter Outlet (Replaces: 242220129) |
|
Immediately | $ 14.33 | ||||
| 47 | 5304539695 | Hose, Filter Inlet (Replaces: 242220130) |
|
Immediately | $ 14.49 | ||||
| 29A | 5304525861 | Divider, Lower Drawer, Rh |
|
Immediately | $ 38.56 | ||||
| 29B | 5304525862 | Divider, Lower Drawer, Lh |
|
Immediately | $ 36.15 | ||||
| 6A | 5304528814 | Nut, Leg Leveler |
|
Immediately | $ 9.64 | ||||
| 6B | 5304528815 | Foot, Leg Leveler |
|
Immediately | $ 11.25 | ||||
| NI | 241705801 | Spacer, Shelf/wtr Tube |
|
$ 7.88 | |||||
| NIA | 5304525859 | Cover, Absorber, Ethylene |
|
$ 19.28 | |||||
| NIA | 5304528818 | Screw, Shoulder, #8-18 X 5/8 |
|
$ 7.58 | |||||
| NIA | 297350900 | Gasket, Shelf |
|
$ 20.09 | |||||
| NIA | 5304525886 | Gasket, Cover, Black, Front |
|
- | |||||
| NIB | 5304528816 | Gasket, Crisper Cover, Rear |
|
$ 27.31 |
