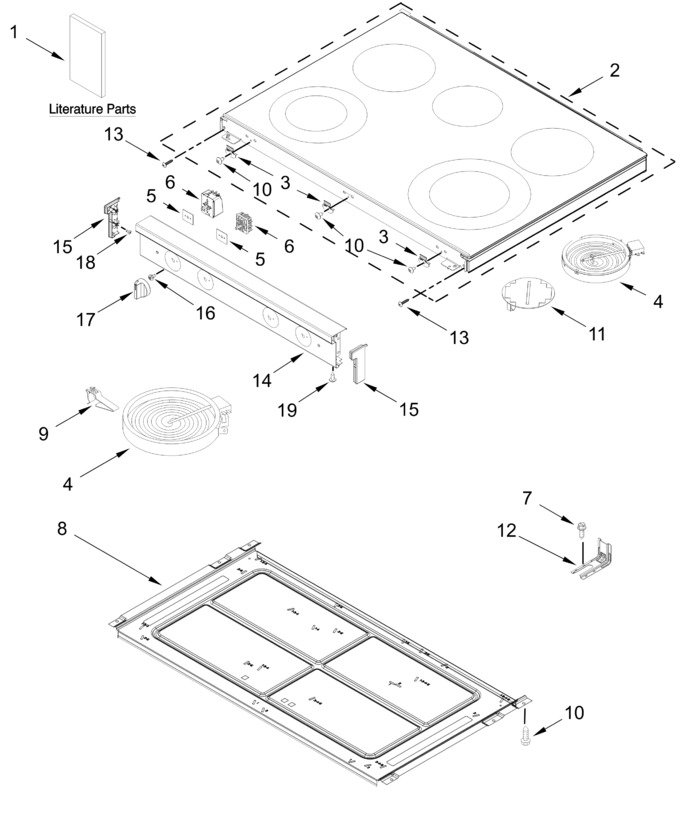

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11789764 | Cooktop (black, Includes Cooktop Bracket) (Replaces: W11678850) |
|
$ 988.00 | |||||
| 3 | W11730543 | Bracket, Cooktop (Replaces: W11593284) |
|
Immediately | $ 11.52 | ||||
| 4 | W11517959 | Element (3000 And 1400w) (Replaces: W10275048) |
|
Immediately | $ 134.44 | ||||
| 5 | 7201P07760 | Gasket, Infinite Switch |
|
- | |||||
| 6 | W10857622 | Switch, Infinite (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| 7 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 8 | W11729951 | Pan, Radiant Element (Replaces: W11300812) |
|
$ 223.66 | |||||
| 9 | W11663556 | Spring, Element (Replaces: W11600012) |
|
Immediately | $ 14.84 | ||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 11 | W11706247 | Element, Warm Zone (Replaces: W11668631) |
|
Immediately | $ 133.94 | ||||
| 12 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 13 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 14 | W11781585 | Panel Upper, Manifold (stainless) (Replaces: W11723542) |
|
Immediately | $ 327.34 | ||||
| 15 | W11730268 | Endcap (stainless, Left) (Replaces: W11386024) |
|
$ 84.98 | |||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 17 | W11730076 | Knob (stainless, Single) (Replaces: W11635836) |
|
Immediately | $ 101.49 | ||||
| 18 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 19 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| ARI68146C2FADA8E1AE3122F181AC9275E2 | (left Front, Right Front) |
|
- | ||||||
| W11729544 | Tech Sheet |
|
- | ||||||
| W11730074 | Knob (stainless, Dual) (Replaces: W11635837) |
|
$ 68.40 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| W11730267 | Endcap (stainless, Right) (Replaces: W11386023) |
|
$ 84.98 | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| ARI9E076A4EB9AA7BF3DBA6ED9D0C1B5D12 | (center Rear) |
|
- | ||||||
| W11729952 | Harness, Hidden Bake (Replaces: W11585874) |
|
$ 61.80 | ||||||
| ARI1CEA8328406821DB8179A8C971BDB5B4 | (left Rear, Right Rear) |
|
- | ||||||
| W10911303 | Switch, Infinite (Replaces: W10578768) |
|
Immediately | $ 104.64 | |||||
| W11781580 | Harness, Front Dual (Replaces: W11678209) |
|
- | ||||||
| W11817175 | Harness, Cooktop (Replaces: W11678208) |
|
- | ||||||
| W11171119 | Element (1200w) (Replaces: 8273994) |
|
Immediately | $ 182.23 | |||||
| W11781579 | Harness, Main (Replaces: W11670955) |
|
Immediately | $ 234.14 | |||||
| W11781582 | Harness, Wire (Replaces: W11385156) |
|
- | ||||||
| W10823727 | Element, Dual (3000w) (Replaces: W10711900) |
|
Immediately | $ 342.63 | |||||
| W11638635 | Owners Manual |
|
- | ||||||
| W11638798 | Quick Start Guide |
|
- |
