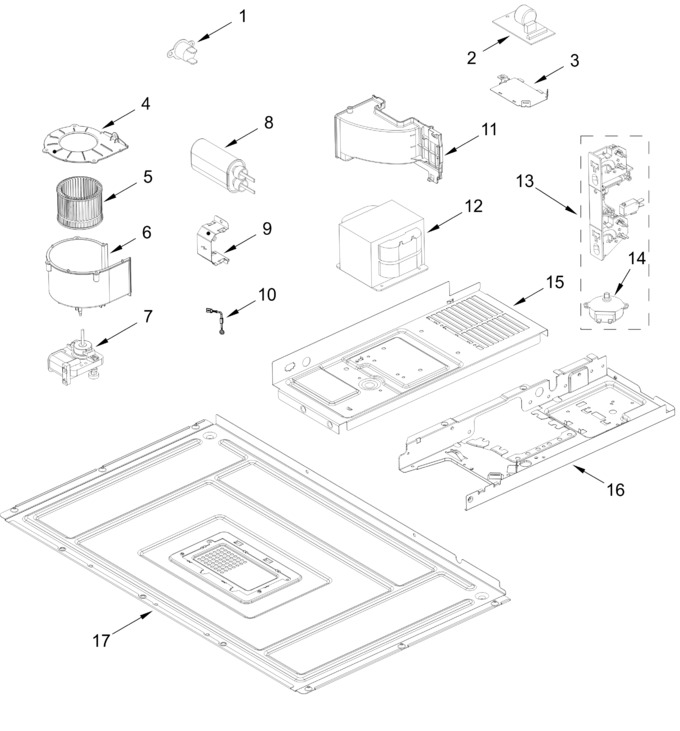

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Air Flow Parts
Cabinet And Installation Parts
Control Panel Parts
Door And Trim Parts
Interior And Ventilation Parts
Turntable Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11378281 | Thermostat, Cavity |
|
$ 37.39 | |||||
| 2 | W11455475 | Board, Noise Filter (Replaces: W11425905) |
|
$ 132.32 | |||||
| 3 | W10313274 | Bracket, Noise Filter |
|
$ 32.32 | |||||
| 4 | W11752349 | Cover, Cooling Fan (Replaces: W11088345) |
|
$ 28.34 | |||||
| 5 | W11088354 | Wheel, Cooling Fan |
|
Immediately | $ 100.03 | ||||
| 6 | W11213349 | Housing, Cooling Fan (Replaces: W11088352) |
|
$ 81.13 | |||||
| 7 | W11545874 | Motor, Cooling Fan (Replaces: W11490447) |
|
$ 90.53 | |||||
| 8 | WPW10574736 | Capacitor, High Voltage (Replaces: W10574736) |
|
$ 179.12 | |||||
| 9 | W11095808 | Bracket, Capacitor |
|
- | |||||
| 10 | W11817793 | Diode, High Voltage (Replaces: W10492278) |
|
- | |||||
| 11 | W11088358 | Air Guide, Magnetron |
|
- | |||||
| 12 | W11783302 | Transformer, High Voltage (Replaces: W11755318) |
|
$ 261.48 | |||||
| 13 | W11493414 | Interlock Assembly (includes Switches) (Replaces: W11479930) |
|
Immediately | $ 62.22 | ||||
| 14 | W11545873 | Motor, Door Eject (Replaces: W11511670) |
|
Immediately | $ 42.71 | ||||
| 15 | W11164809 | Chassis, Transformer |
|
$ 130.06 | |||||
| 16 | W11440761 | Plate, Chassis |
|
- | |||||
| 17 | W11449943 | Plate, Bottom |
|
- |
