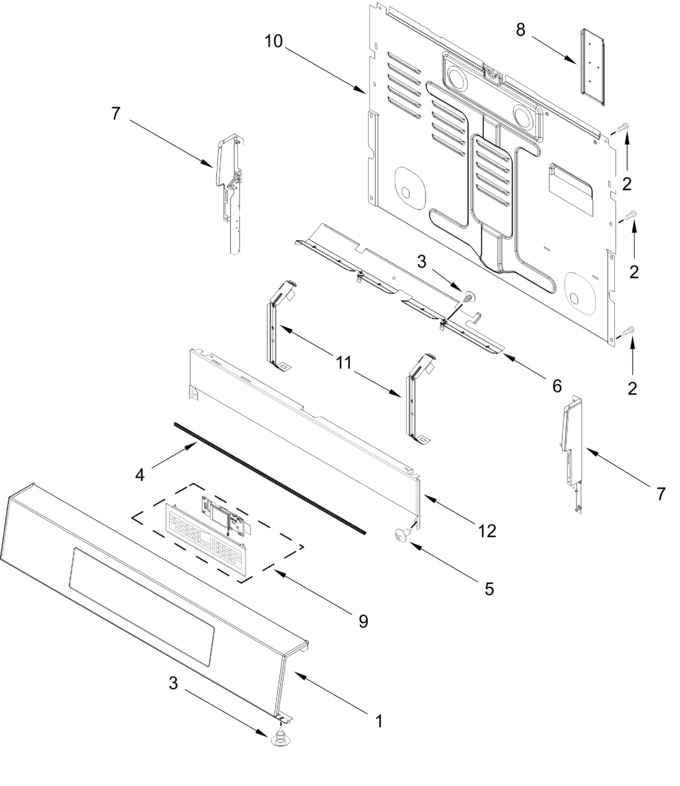

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11753205 | Console, Panel (stainless) (Replaces: W11625459) |
|
Immediately | $ 355.83 | ||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 3 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 4 | W11728258 | Gasket, Lower Panel (Replaces: W11643797) |
|
$ 58.00 | |||||
| 5 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 6 | W11747326 | Shield, Heat (Replaces: W11736649) |
|
- | |||||
| 7 | W11728387 | Console, Endcap (stainless, Left) (Replaces: W11625424) |
|
$ 116.19 | |||||
| 8 | W11747327 | Cover, Rear Flue (Replaces: W11736681) |
|
- | |||||
| 9 | W11812062 | User Interface (Replaces: W11708279) |
|
$ 562.11 | |||||
| 10 | W11729935 | Cover, Upper Rear (Replaces: W11392241) |
|
Immediately | $ 132.02 | ||||
| 11 | W11728256 | Bracket, Control (Replaces: W11371599) |
|
- | |||||
| 12 | W11729961 | Panel, Lower (stainless) (Replaces: W11625404) |
|
$ 218.80 | |||||
| W11728386 | Console, Endcap (stainless, Right) (Replaces: W11625421) |
|
Immediately | $ 116.19 |
