Cooktop Parts


Interior Parts


Optional Parts (not Included)

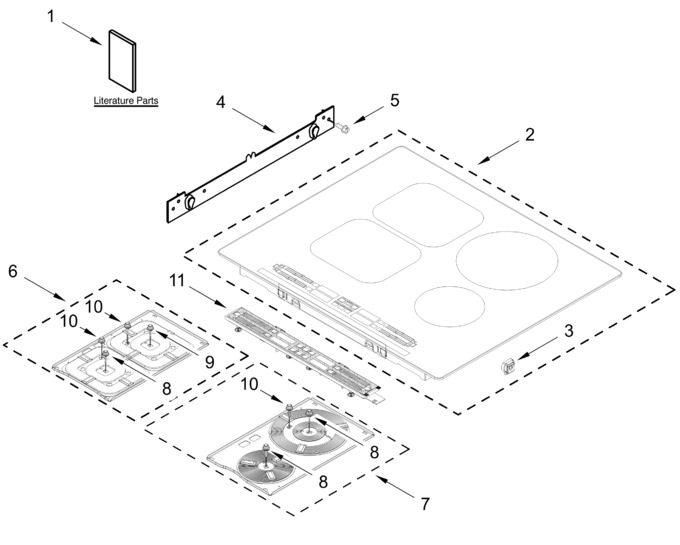

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11778588		Glass Cooktop Assembly (black)   (Replaces: W11603588)		Appelez-nous	-
3	W11495019		Cooktop Spring   (Replaces: W11279477)			Immediately	$ 40.26
4	W11495626		Cooktop Support Bracket   (Replaces: W11279478)			Immediately	$ 85.59
5	7101P41560		Screw		Appelez-nous	-
6	W11771407		Induction Element Assembly   (Replaces: W11669265)		Appelez-nous	-
7	W11777813		Induction Element Assembly   (Replaces: W11669275)		Appelez-nous	-
8	W11739256		Sensor Assembly		Appelez-nous	-
9	W11739258		Sensor Assembly		Appelez-nous	-
10	W11739255		Sensor Assembly		Appelez-nous	-
11	W11808318		User Interface Assembly (hmi)   (Replaces: W11663088)		Appelez-nous	-
	W11754123		Quick Start Guide		Appelez-nous	-
	W11749255		Tech Sheet		Appelez-nous	-
	W11752473		Owner's Manual		Appelez-nous	-
