SELECT A DIAGRAM

01 - Cover Sheet

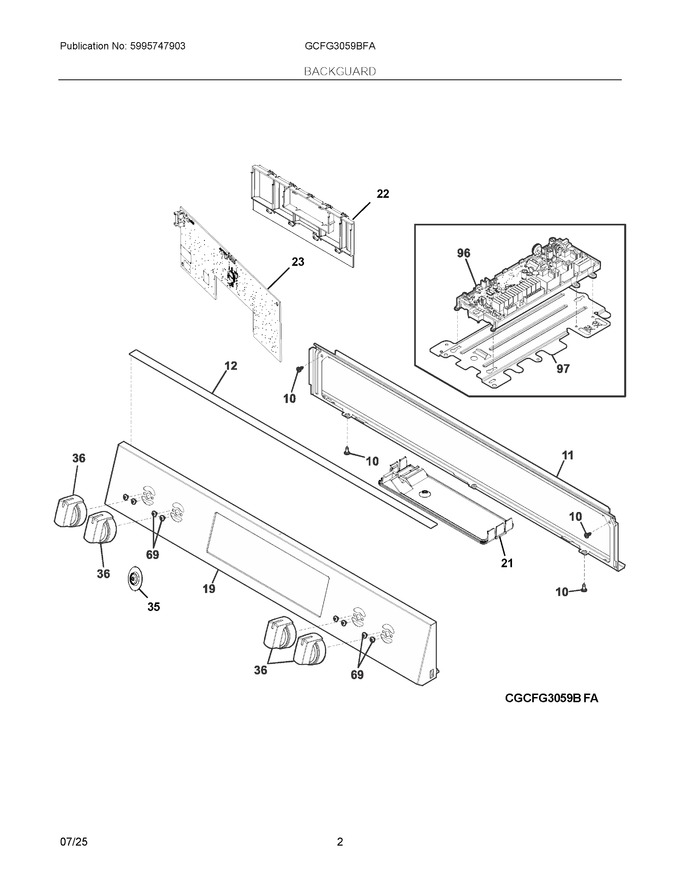

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Schematic


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
11	5304528295		Bracket, Support, Front Control			Immediately	$ 28.14
12	5304534089		Seal, Maintop Panel		Appelez-nous	-
19	5304538837		Control Panel, Assembly, Stainless				$ 166.51
21	5304538627		Cover, Control Ui		Appelez-nous	-
22	5304533876		Chassis, Control			Immediately	$ 19.90
23	140199403027		Control Board, Hmi Hector				$ 54.86
35	5304508440		Bushing, Insulating			Immediately	$ 12.64
36	5304536322		Knob, Top Valve, Stainless				$ 43.71
56	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.37
96	140171068053		Pc Board, Ovc Relay   (Replaces: 5304535108)			Immediately	$ 141.03
97	5304528372		Bracket, Ovc Board				$ 12.98
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.58
NI	5304536410		Standoff, Harness Clamp			Immediately	$ 2.54
NI	5304538629		Harness, Macs To Ui		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NI	316089500		Screw, 10-16 X .486				$ 14.96
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
