SELECT A DIAGRAM

01 - Cover Sheet

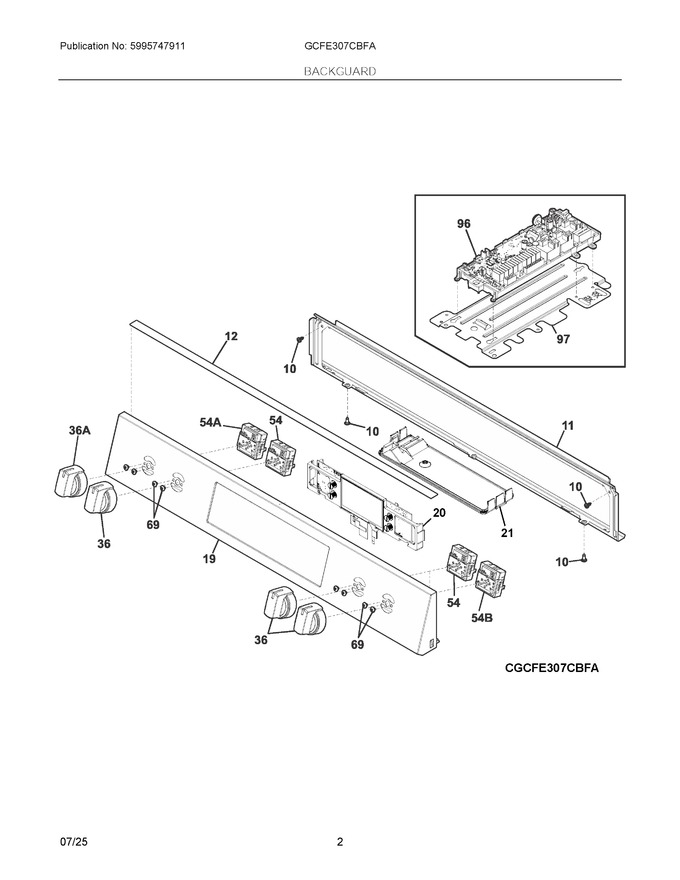

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
11	5304528295		Bracket, Support, Front Control			Immediately	$ 28.14
12	5304528554		Seal, Smoothtop			Immediately	$ 35.40
19	140199546486		Control Panel, Assembly, Stainless			Immediately	$ 152.72
20	140225820293		Controller, Electronic, Ui730   (Replaces: 140225820087)				$ 209.37
21	5304533954		Housing, Control		Appelez-nous	-
36	5304533887		Knob, Control, Stainless, Single			Immediately	$ 43.71
54	5304522966		Switch, Infinite, Single			Immediately	$ 86.79
69	5304526494		Screw, Truss T-20, 8-32 X 3/16, 137*, Switch Mtg.			Immediately	$ 2.58
96	140171068079		Pc Board, Assembly, Ovc			Immediately	$ 142.64
97	5304528373		Bracket, Ovc Board			Immediately	$ 24.59
36A	5304533888		Knob, Control, Stainless, Dual				$ 43.71
54A	140173679014		Switch, Infinite, Dual			Immediately	$ 37.01
54B	140173680012		Switch, Infinite, Tboil			Immediately	$ 38.18
NI	5304535876		Harness-energy Regulator 5s				$ 123.04
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.58
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	5304529016		Harness, Wiring, Macs Panel, To Ui Board				$ 25.73
NI	5304536410		Standoff, Harness Clamp			Immediately	$ 2.54
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
