SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard

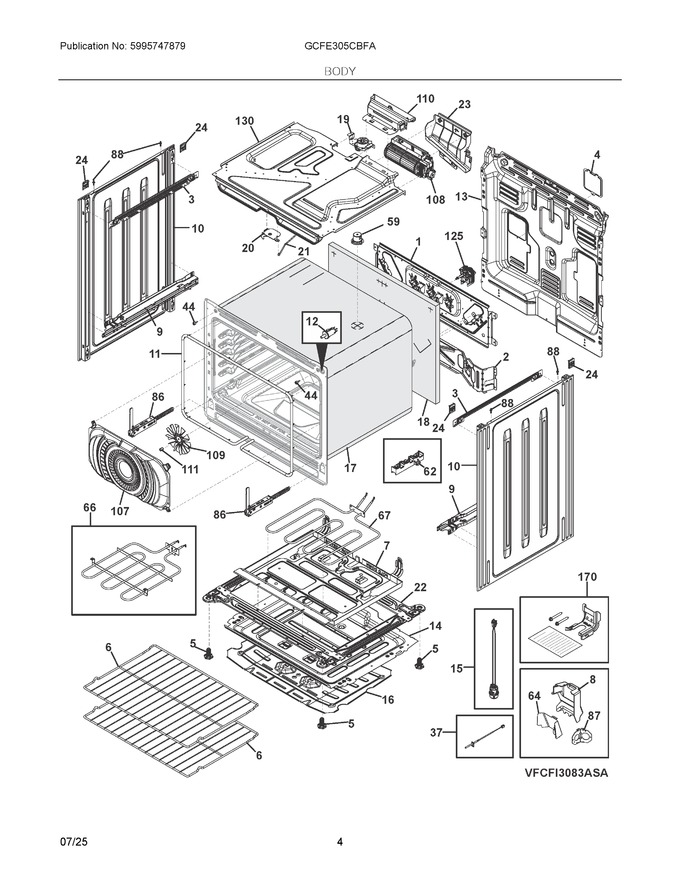

03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304536629		Bracket, Rear Components, Upper			Immediately	$ 44.35
2	5304533425		Bracket, Components, Lower				$ 67.91
3	5304526493		Bracket, Side Panel, Cooling				$ 16.80
4	5304528328		Cover, Wiring				$ 9.61
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 30.55
6	5304531722		Rack, Oven, Wire, Flat   (Replaces: 5304526378)			Immediately	$ 56.72
7	5304528326		Tray, Hidden Bake				$ 58.14
8	5304528549		Cover, Terminal Block			Immediately	$ 42.01
10	5304526334		Panel, Body Side, Black			Immediately	$ 153.87
11	5304526243		Seal, Door			Immediately	$ 57.63
12	318394805		Switch, Light, Door				$ 8.96
13	5304536325		Shield, Rear Wire, Small		Appelez-nous	-
14	5304533432		Shield, Insulation, Lower				$ 94.82
15	5304533411		Lamp Assembly, Oven, G9 40w, Halogen			Immediately	$ 40.56
16	5304533453		Shield, Drawer Storage, Full		Appelez-nous	-
17	5304538075		Insulation, Oven Wrapper   (Replaces: 5304528186)		Appelez-nous	-
18	5304528188		Insulation, Oven Back		Appelez-nous	-
19	5304528260		Motor, Latch, W/bracket			Immediately	$ 53.82
20	5304528257		Latch Assembly			Immediately	$ 21.06
21	5304528259		Rod, Latch				$ 9.03
22	5304533415		Base Rail, Assembly			Immediately	$ 152.96
23	5304533976		Guard, Lower, Plastic, Black		Appelez-nous	-
37	5304533448		Probe, Oven Temp, Sensor			Immediately	$ 54.60
44	316517600		Bumper, Front, Main				$ 13.39
53	807822611		Probe, Food, Red			Immediately	$ 27.85
54	140233289051		Receptacle, Meat Probe   (Replaces: 5304535145)			Immediately	$ 32.60
59	5304528243		Tube, Oven Vent				$ 23.57
62	5303935271		Terminal Block Kit				$ 81.73
64	5304528550		Shield, Terminal Block				$ 10.56
66	140156193181		Element, Broil, 4000w, 6 Pass   (Replaces: 5304537422)				$ 80.64
67	140156196176		Element, Hidden Bake, 8 Pass, 2500w, 240v   (Replaces: 5304526373)			Immediately	$ 63.21
86	5304528099		Hinge, Oven Door, Green, 2 Spring				$ 70.22
87	5304526449		Bracket, Power Cord				$ 9.21
88	316099501		Pin, Guide		Appelez-nous	-
107	5304526365		Cover, Fan, Midnight Black, Convection		Appelez-nous	-
108	5304537802		Blower Assembly   (Replaces: 5304528167)			Immediately	$ 123.76
109	5304525455		Blade, Fan, Convection				$ 16.01
110	5304533437		Duct Assembly, Cooling				$ 43.16
111	561231207		Nut, Fan Blade			Immediately	$ 20.39
125	5304528165		Motor, Convection Fan			Immediately	$ 84.20
130	5304528291		Duct Assembly, Cooling, Upper				$ 156.35
161	140195758051		Element, Convection, 3800w, 240v, Rectangular   (Replaces: 5304526565)		Appelez-nous	-
170	316112010		Anti Tip Kit, Assy, 30", W/template			Immediately	$ 25.62
125A	5304528166		Motor, Convection Fan				$ 96.93
17A	5304538075		Insulation, Oven Wrapper		Appelez-nous	-
6A	5304531722		Rack, Oven, Flat			Immediately	$ 56.72
9A	5304528546		Receptacle, Hinge Carrier			Immediately	$ 38.31
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.58
NI	5304533915		Harness, Wiring, Low Voltage				$ 48.97
NI	5304533885		Power Cord, Electric Servc			Immediately	$ 169.31
NI	316205500		Nut, Hex Flange, 3/8 10-32				$ 12.60
NI	5304536410		Standoff, Harness Clamp			Immediately	$ 2.54
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NIA	5304533495		Screw, Sd Hex Washer, 4.2 X 12.7		Appelez-nous	-
NIA	5304534653		Clip, Support, Burner Box				$ 10.79
NIA	387856311		Screw, 4.2 X 10				$ 3.37
NIA	5304526532		Screw, M4.2 X 9.5, Black				$ 3.37

    View Diagram in Separate Window       Print Part List
