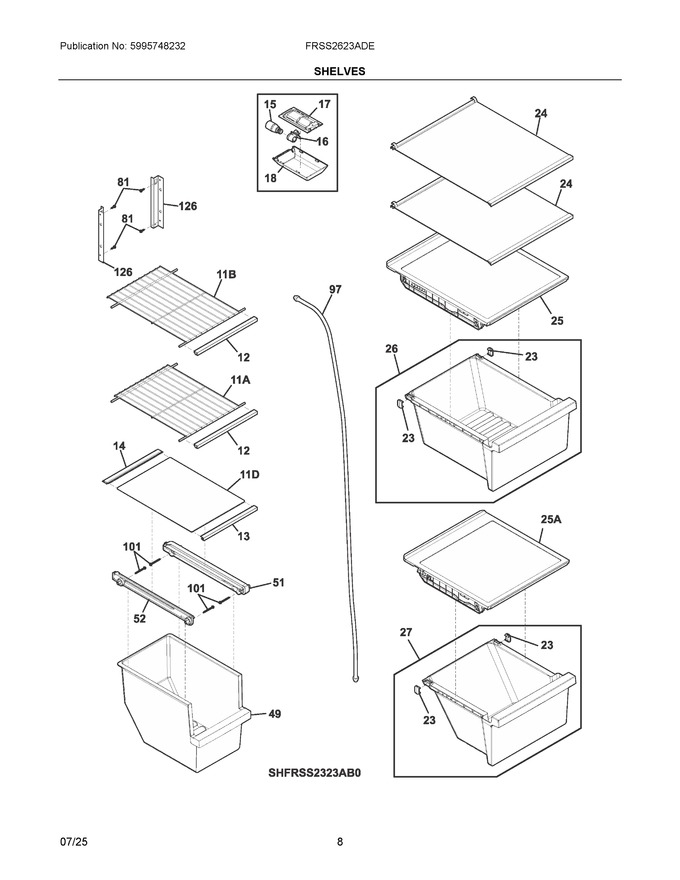

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5304525936		Trim, Wire Shelf, White		Appelez-nous	-
13	5304525937		Trim, Glass Shelf, Freezer, Front		Appelez-nous	-
14	5304527128		Trim, Freezer Shelf, Rear				$ 18.54
15	5304522314		Bulb, Light, E17/12 Led			Immediately	$ 44.66
16	5304522315		Socket, Led Light			Immediately	$ 11.80
17	5304526001		Housing, Light, Fresh Food				$ 13.48
18	5304526002		Lens, Light, Fresh Food				$ 25.28
23	5304525911		Clip, Slide, Crisper			Immediately	$ 11.80
24	5304525933		Shelf Assembly, Glass, White				$ 144.09
25	5304525934		Crisper Cover, Assembly, Glass, Upper, W/trim-gasket			Immediately	$ 179.20
26	5304535020		Cridsper Pan, Upper, W/slide Clips		Appelez-nous	-
27	5304535021		Cridsper Pan, Lower, W/slide Clips		Appelez-nous	-
30	5304525945		Rail, Ice Container, Rh		Appelez-nous	-
31	5304525946		Rail, Ice Container, Lh				$ 111.23
49	5304525919		Basket, Freezer, Sliding				$ 80.17
51	240343002		Hanger-basket, Rh				$ 72.47
52	240343102		Hanger-basket, Lh				$ 77.52
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 15.75
97	242220119		Tube, Water, 97.5", Natural, Filter Base To, Secondary Valve			Immediately	$ 33.86
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 14.96
126	241674401		Channel, Auger Mtg, Lh				$ 52.76
11A	241657512		Shelf, Fixed, Freezer   (Replaces: 241657502)				$ 18.74
11B	241657514		Shelf, Fixed, Upper, Freezer   (Replaces: 241657504)		Appelez-nous	-
11D	240350605		Shelf-freezer, Glass, Lower				$ 118.81
126A	241674402		Channel, Auger Mtg, Rh				$ 48.04
25A	5304535254		Crisper Cover, Assembly, Glass, Lower		Appelez-nous	-
NI	5304525946		Rail, Ice Container, Lh				$ 111.23
NI	5304525945		Rail, Ice Container, Rh		Appelez-nous	-
NIA	242200102		Clip, Tubing, 90 Deg Elbow				$ 11.81
