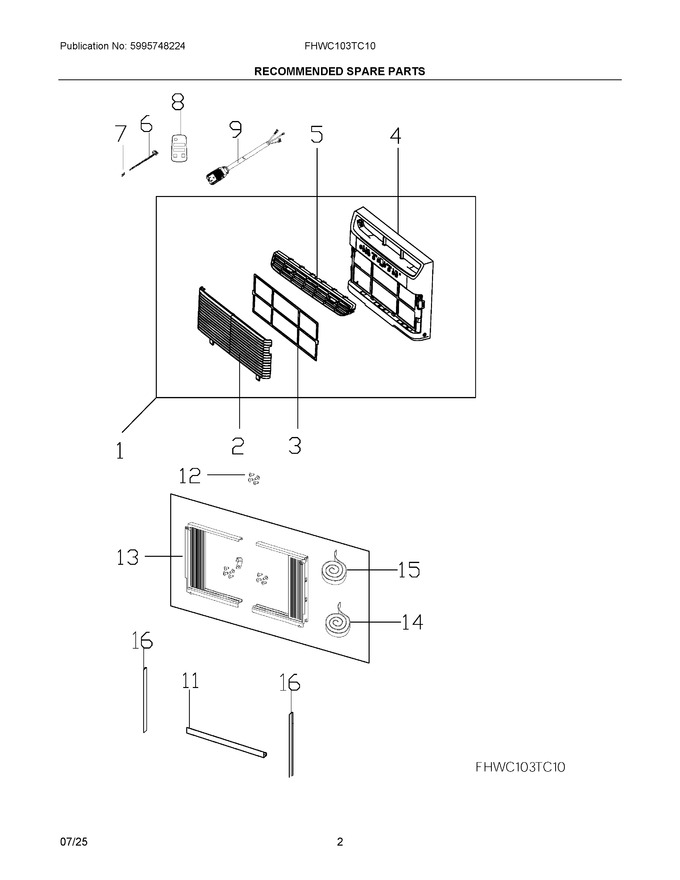

02 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304536891 | Panel Assembly, Front |
|
- | |||||
| 2 | 5304536894 | Grill, Front |
|
- | |||||
| 3 | 5304520873 | Filter-air |
|
$ 21.11 | |||||
| 4 | 5304536897 | Frame |
|
- | |||||
| 5 | 5304520875 | Louvres |
|
- | |||||
| 6 | 5304520876 | Door, Vent Control |
|
- | |||||
| 7 | 5304520877 | Sleeve, Door - Vent |
|
- | |||||
| 8 | 5304520825 | Control, Remote |
|
- | |||||
| 9 | 5304536807 | Power Cord, Electric, 115v, Lcdi |
|
$ 140.95 | |||||
| 11 | 5304534764 | Rail, Top |
|
- | |||||
| 12 | 5304520812 | Screw, Top Rail, 4 |
|
- | |||||
| 13 | 5304520880 | Insulation, Kit |
|
- | |||||
| 14 | 5304520810 | Seal |
|
- | |||||
| 15 | 5304520837 | Seal |
|
- | |||||
| 16 | 5304523819 | Slides, Window Panels, Connector |
|
- |
