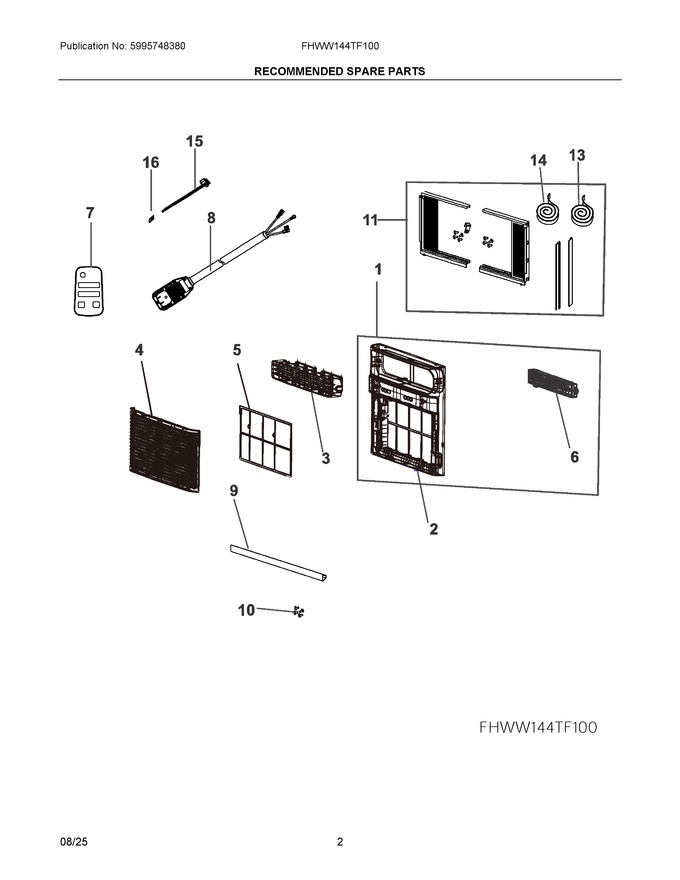

02 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304536902 | Front Frame, Assembly |
|
- | |||||
| 2 | 5304536878 | Frame, Front Panel |
|
- | |||||
| 3 | 5304534762 | Louvre, Vertical |
|
- | |||||
| 4 | 5304534760 | Panel, Front |
|
- | |||||
| 5 | 5304534761 | Filter, Air |
|
- | |||||
| 6 | 5304534765 | Control Panel, Assembly (Replaces: 5304534747) |
|
- | |||||
| 7 | 5304534748 | Remote Control |
|
- | |||||
| 8 | 5304536807 | Power Cord, Electric, 115v, Lcdi |
|
$ 140.95 | |||||
| 9 | 5304534764 | Rail, Top |
|
- | |||||
| 10 | 5304520812 | Screw, Top Rail, 4 |
|
- | |||||
| 11 | 5304520880 | Insulation, Kit |
|
- | |||||
| 13 | 5304520810 | Seal |
|
- | |||||
| 14 | 5304520837 | Seal |
|
- | |||||
| 15 | 5304534763 | Door, Ventilation |
|
- | |||||
| 16 | 5304504801 | Sleeve, Vent Door Assy, Guide |
|
- |
