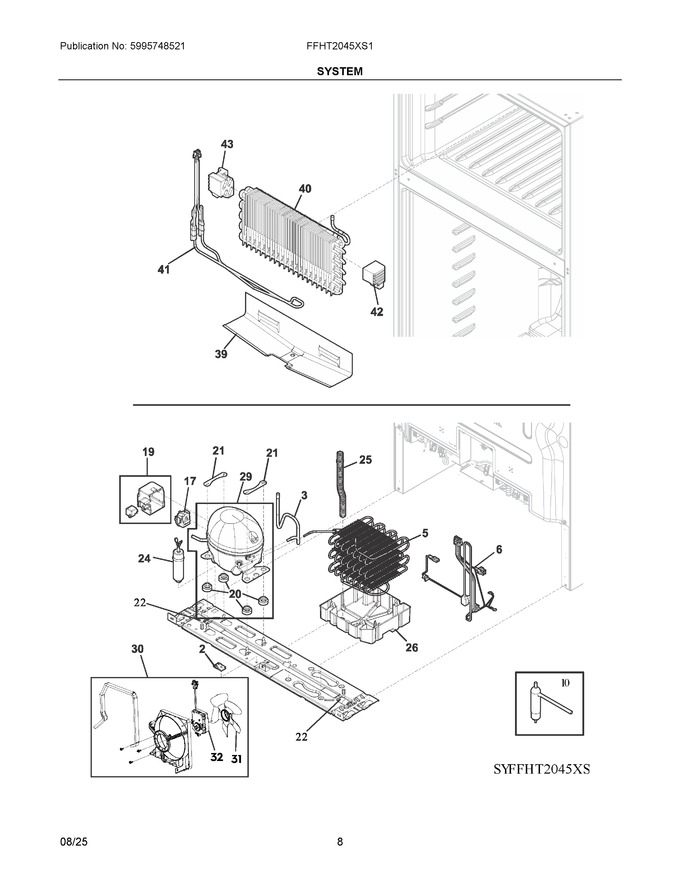

04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304456288		Clamp, Wiring Harness, Galv Steel, Strn Relief		Appelez-nous	-
3	5304519693		Tube, Suction Jumper				$ 34.55
5	5304530007		Condenser, Dynamic			Immediately	$ 97.36
6	5304519649		Harness, Wiring, Machine Compt.			Immediately	$ 109.85
10	A19676501		Filter, Drier, Service   (Replaces: 5304522277)			Immediately	$ 110.81
17	5304529285		Starter, Compressor, Tsd 2.1			Immediately	$ 80.05
19	5304528888		Cover, Electricals, Compressor				$ 23.99
20	5304522323		Grommet, Compressor				$ 42.98
21	5304524607		Clamp, Compressor				$ 3.21
22	5304519667		Base Assembly, Compressor, W/rollers			Immediately	$ 71.62
24	5304530011		Capacitor, 24 #			Immediately	$ 30.95
25	5304519743		Tube, Drain Extension			Immediately	$ 9.27
26	5304519674		Pan, Drain				$ 43.85
27	5304519750		Seal, Foam, Drain Pan				$ 2.91
29	5304538464		S/a Pur Comp. Jiax Te1114hy		Appelez-nous	-
30	5304519734		Fan Assembly, Condenser, W/shroud-foam			Immediately	$ 174.43
31	8582416395027		Blade, Condenser Fan		Appelez-nous	-
39	5304519679		Trough, Evap Drain				$ 64.04
40	5304522324		Evaporator   (Replaces: 140148637014)			Immediately	$ 166.78
41	5304522340		Heater, Evap Defrost, W/thermostat			Immediately	$ 98.66
42	5304522326		Support, Evaporator, Rh				$ 8.43
43	5304522327		Support, Evaporator, Lh				$ 8.43
NI	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 16.85
NI	241500305		Screw, Hex Hd, #8-18 X 5/8				$ 3.37
