01 - Cover

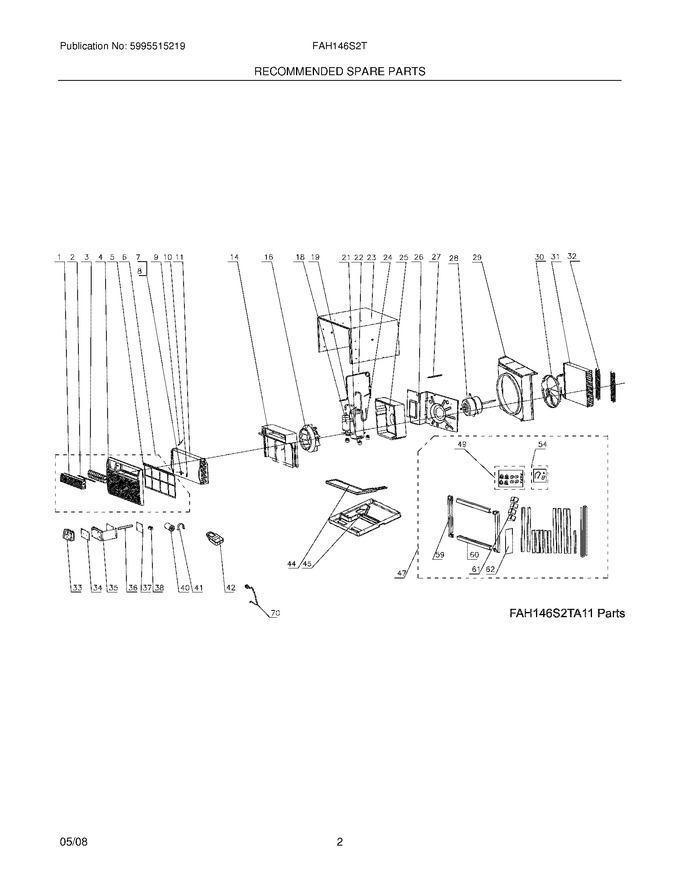

03 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304459705 | Link,vertical Louver ,with Handle |
|
- | |||||
| 4 | 5304459669 | Panel,front Grille |
|
$ 189.79 | |||||
| 8 | 5304460030 | Clip,sensor Support |
|
- | |||||
| 10 | 5304459777 | Deflector,air Filter ,guide |
|
- | |||||
| 14 | 5304467078 | Scroll,blower Housing ,front |
|
- | |||||
| 19 | 5304467162 | Grommet,compressor ,rubber |
|
- | |||||
| 23 | 5304467084 | Cabinet,wrapper/sleeve |
|
- | |||||
| 25 | 5304467166 | Scroll,blower Housing ,rear |
|
- | |||||
| 26 | 5304467167 | Bulkhead,air System |
|
- | |||||
| 27 | 5304467088 | Rod,connecting |
|
- | |||||
| 29 | 5304467090 | Shroud,fan Housing ,condenser |
|
- | |||||
| 32 | 5304467092 | Grille,rear |
|
$ 16.07 | |||||
| 33 | 5304467159 | Control Panel,display Console |
|
- | |||||
| 35 | 5304463747 | Control Box |
|
- | |||||
| 41 | 5304459676 | Strap,capacitor Clamp |
|
- | |||||
| 44 | 5304467096 | Tray,drip Pan |
|
- | |||||
| 45 | 5304467171 | Base,unit Chassis |
|
- | |||||
| 49 | 5304459817 | Fastener Kit,screws,washers |
|
- | |||||
| 59 | 5304459820 | Trim,cabinet Frame ,side |
|
$ 44.69 | |||||
| 60 | 5304459821 | Trim,cabinet Frame ,top/bottom |
|
$ 45.09 | |||||
| 61 | 5304459822 | Block,spacer Support ,(2) |
|
- | |||||
| 62 | 5304459823 | Spacer,tapered Board ,baffle |
|
- | |||||
| F1 | 5304459668 | Louver,horizontal |
|
- | |||||
| F11 | 5304467161 | Evaporator |
|
- | |||||
| F16 | 5304467079 | Blower Wheel,centrifugal Fan |
|
- | |||||
| F18 | 5304459749 | Compressor,with Overload |
|
- | |||||
| F21 | 5304467163 | Tube,suction |
|
- | |||||
| F22 | 5304467164 | Tube,capillary |
|
- | |||||
| F24 | 5304467165 | Tube,discharge |
|
- | |||||
| F28 | 5304467173 | Motor,fan |
|
- | |||||
| F3 | 5304459706 | Louver,vertical |
|
- | |||||
| F30 | 5304459786 | Fan Blade,propeller |
|
- | |||||
| F31 | 5304467169 | Condenser |
|
- | |||||
| F34 | 5304467094 | Pc Board,display/input |
|
$ 132.32 | |||||
| F36 | 5304459673 | Connector,electric ,pole |
|
- | |||||
| F37 | 5304459716 | Pc Board,control ,main |
|
$ 262.71 | |||||
| F38 | 5304459674 | Terminal,electric ,board 2-8 |
|
- | |||||
| F40 | 5304467170 | Capacitor |
|
- | |||||
| F42 | 5304465522 | Remote Control,transmitter |
|
$ 87.74 | |||||
| F47 | 5304467098 | Installation Kit,complete |
|
$ 166.44 | |||||
| F5 | 5304459671 | Filter,air |
|
$ 40.06 | |||||
| F54 | 5304459818 | Grounding Kit |
|
- | |||||
| F6 | 5304467075 | Front Assembly,complete Panel |
|
$ 165.44 | |||||
| F7 | 5304459792 | Thermistor,temp Sensor ,ambient |
|
$ 64.16 | |||||
| F70 | 5304467124 | Power Cord,electric ,lcdi |
|
- | |||||
| F9 | 5304459793 | Thermistor,evap Sensor ,defrost |
|
$ 69.60 |
