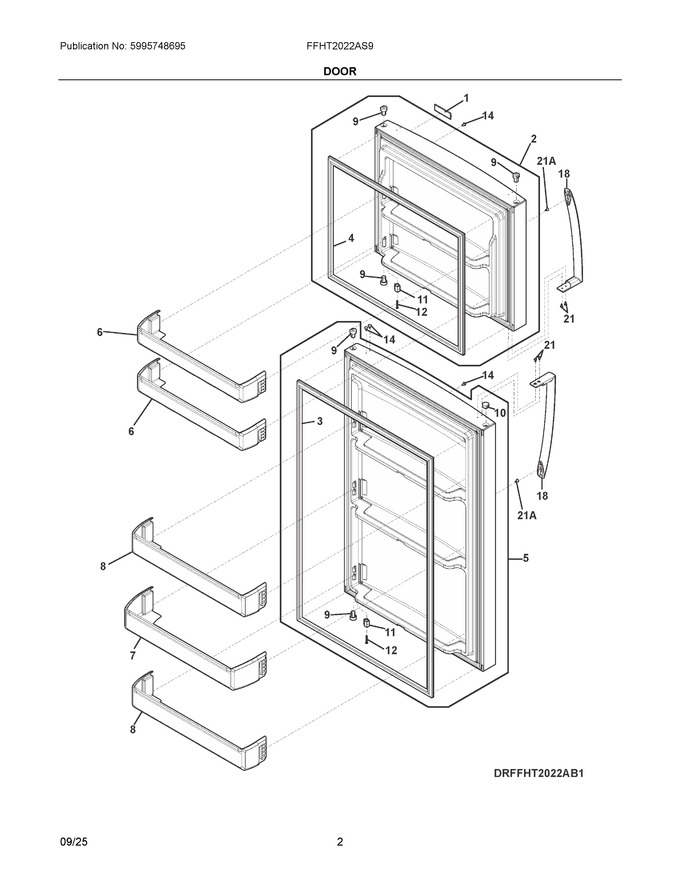

02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304511146		Badge, Frigidaire, Chrome			Immediately	$ 52.25
2	5304536269		Door Assembly, Freezer, Stainless			Immediately	$ 343.43
3	5304528903		Gasket, Door, Gray, Fresh Food			Immediately	$ 227.91
4	5304528904		Gasket, Door, Gray, Freezer			Immediately	$ 200.01
5	5304536268		Door Assembly, Fresh Food, Stainless			Immediately	$ 473.97
6	5304519702		Bin, Door, White, Freezer			Immediately	$ 56.26
7	5304522123		Bin, Door, 6", White, Refrigerator			Immediately	$ 78.61
8	5304519703		Bin, Door, 4", White, Refrigerator			Immediately	$ 24.91
9	5304522194		Bearing, Hinge, Gray			Immediately	$ 2.53
10	5304522187		Cover, Hinge Bearing, Gray			Immediately	$ 8.27
11	5304536275		Stopper, Door, Gray			Immediately	$ 4.19
12	241953905		Screw, 8-18 X 1.25			Immediately	$ 12.64
14	5304539159		Button-plug, 5501 Gray		Appelez-nous	-
18	5304511368		Handle, Door, Stainless, Ref Rhs, W/set Screw				$ 243.52
21	5304515677		Screw, Truss Hd Quad, #10-16 X .500, Zinc   (Replaces: 240383406)			Immediately	$ 21.37
36	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 16.85
21A	240521303		Screw, #10-16 X 1/2			Immediately	$ 33.55
