SELECT A DIAGRAM
01 - Cover Sheet

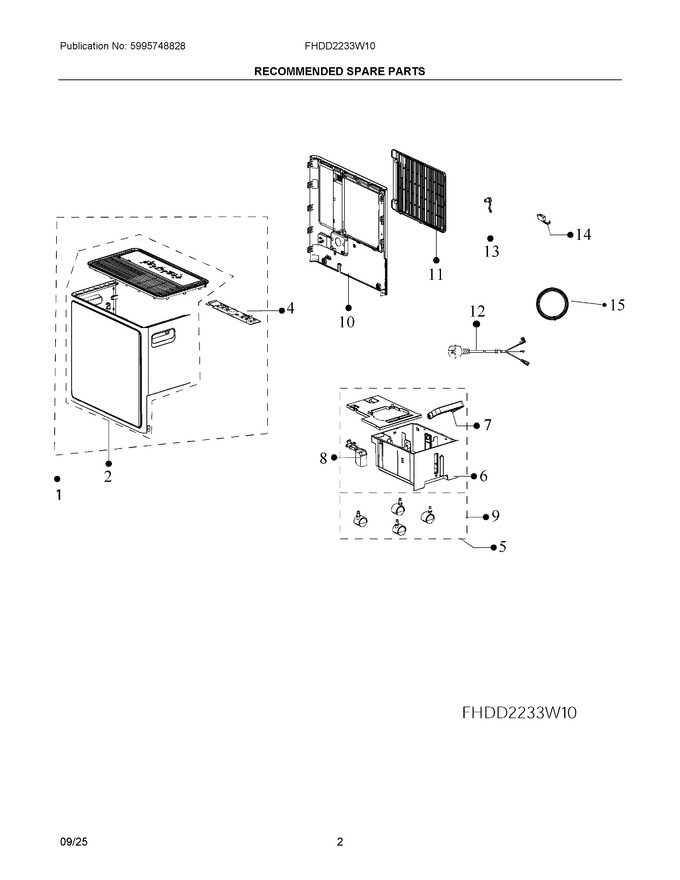

02 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4056042270 | Front Panel, Assembly |
|
- | |||||
| 2 | 4056042288 | Front Panel |
|
- | |||||
| 4 | 4056042296 | Control And Display Board, Assembly |
|
- | |||||
| 5 | 4056042304 | Water Tank, Assembly |
|
- | |||||
| 6 | 4056042312 | Water Tank |
|
- | |||||
| 7 | 4056042320 | Handle, Water Tank |
|
- | |||||
| 8 | 5304523391 | Float, Bucket |
|
$ 13.01 | |||||
| 9 | 4056034384 | Wheel Assembly, Universal |
|
- | |||||
| 10 | 4056042338 | Rear Panel |
|
- | |||||
| 11 | 4056042346 | Grill, Air Intake |
|
- | |||||
| 12 | 4056042353 | Cord, Electric Service |
|
- | |||||
| 13 | 5304502151 | Plug, Drain Spigot, Rear |
|
- | |||||
| 14 | 5304523392 | Switch, Inching |
|
$ 18.08 | |||||
| 15 | 4056041942 | Drain Hose, Pump |
|
- |
