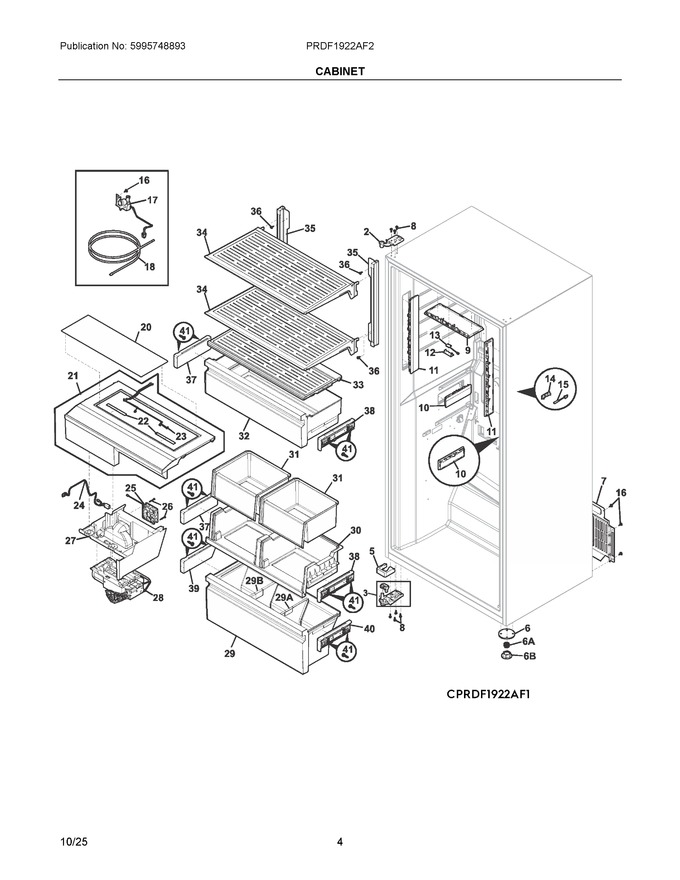

03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304524637 | Hinge, Door, Lh Upper |
|
$ 196.63 | |||||
| 3 | 5304525229 | Hinge Assembly, Lower, Lh |
|
Immediately | $ 80.05 | ||||
| 5 | 5304525228 | Cover, Hinge, Lh Lower |
|
$ 12.05 | |||||
| 6 | 5304528813 | Base, Leveler Leg, Front |
|
Immediately | $ 17.23 | ||||
| 7 | 5304525858 | Cover, Access, Machine Compt. |
|
$ 61.86 | |||||
| 8 | 5304522279 | Screw, Hex Wsh Hd Quad, M5 X 16 |
|
Immediately | $ 3.42 | ||||
| 9 | 140126313091 | Lens, Lamp Assembly, Double, Led |
|
- | |||||
| 10 | 140126313034 | Lens, Lamp Assembly, Single Led |
|
- | |||||
| 11 | 140126313125 | Lens, Lamp Assembly, 3x, Led |
|
- | |||||
| 12 | 5304524762 | Cover, Reed Switch, Grey |
|
$ 10.75 | |||||
| 13 | 140026775019 | Switch, Reed |
|
$ 4.57 | |||||
| 14 | 5304524760 | Cover, Sensor, Grey |
|
$ 10.45 | |||||
| 15 | 5303918775 | Thermistor Kit, Temperature, Ntc, W/connectors |
|
Immediately | $ 26.38 | ||||
| 16 | 241500305 | Screw, Hex Hd, #8-18 X 5/8 |
|
$ 3.37 | |||||
| 17 | 5304538014 | Valve, Water, Single, Solenoid |
|
Immediately | $ 51.73 | ||||
| 18 | 5304536764 | Hose Assembly, Click Connex, Tall T |
|
Immediately | $ 22.86 | ||||
| 20 | 5304524780 | Glass, Control Cover (Replaces: 5304524781) |
|
$ 114.87 | |||||
| 21 | 140130183258 | Control Cover, Assembly, Complete, Freezer (Replaces: 5304538174) |
|
- | |||||
| 22 | 5304524650 | Pc Board, Led Polaris, 6500k |
|
Immediately | $ 62.36 | ||||
| 23 | 5304524766 | Harness, Jumper, Led |
|
$ 12.29 | |||||
| 24 | 5304524779 | Harness, Inetrmediate, To Ice Maker |
|
$ 31.77 | |||||
| 25 | 5304524796 | Motor, Fan, Ice Maker |
|
Immediately | $ 195.94 | ||||
| 26 | 241953905 | Screw, 8-18 X 1.25 |
|
Immediately | $ 12.64 | ||||
| 27 | 5304524653 | Housing, Ice Maker, Grey |
|
Immediately | $ 49.00 | ||||
| 28 | 243297610 | Ice Maker, Assembly, 6-pin |
|
Immediately | $ 171.46 | ||||
| 29 | 5304524710 | Drawer Assembly, Full Width, Lower, W/dividers |
|
$ 269.60 | |||||
| 30 | 5304524709 | Shelf Assembly, Slide Out |
|
$ 202.39 | |||||
| 31 | 140130150026 | Basket, Ice |
|
$ 60.46 | |||||
| 32 | 5304524702 | Drawer Assembly, Full Width, Upper |
|
Immediately | $ 231.23 | ||||
| 33 | 140266479041 | Cover Assembly, Crisper, Upper, W/front Gasket (Replaces: 5304538185) |
|
$ 149.59 | |||||
| 34 | 5304524670 | Shelf Assembly, Glass, W/trim |
|
$ 211.50 | |||||
| 35 | 140171013042 | Rail, Shelf, Support, Assembly |
|
- | |||||
| 36 | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.37 | ||||
| 37 | 5304524854 | Slide Assembly, 9 Inch, Grey, Lh |
|
$ 89.17 | |||||
| 38 | 5304524853 | Slide Assembly, 9 Inch, Grey, Rh |
|
$ 93.18 | |||||
| 39 | 5304524856 | Slide Assembly, 8 Inch, Grey, Lh |
|
$ 89.17 | |||||
| 40 | 5304524855 | Slide Assembly, 8 Inch, Grey, Rh |
|
$ 85.14 | |||||
| 41 | 5304524845 | Screw, Quad Hilo, 4.2x1.41x15.9, Slide Mtg |
|
Immediately | $ 3.21 | ||||
| 29A | 140138033018 | Divider-lower Drawer Rh Tt |
|
- | |||||
| 29B | 140138033026 | Divider-lower Drawer Rh Tt |
|
- | |||||
| 6A | 5304528814 | Nut, Leg Leveler |
|
Immediately | $ 9.64 | ||||
| 6B | 5304528815 | Foot, Leg Leveler |
|
Immediately | $ 11.25 | ||||
| NI | 5304534034 | Screw, Type Ab, #10-16 |
|
- | |||||
| NIA | 5303918733 | Tape, Aluminum, 36mm (Replaces: 5304522179) |
|
Immediately | $ 4.73 | ||||
| NIA | 297350900 | Gasket, Shelf |
|
$ 20.09 |
