SELECT A DIAGRAM
Chassis Parts
Control Panel Parts
Cooktop Parts
Door Parts
Drawer Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

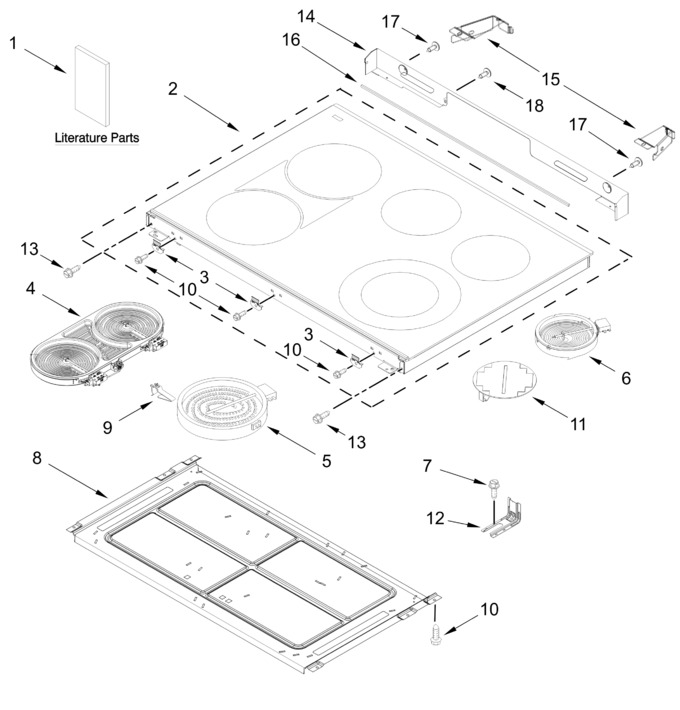

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11789765 | Cooktop (black, Includes Cooktop Bracket) (Replaces: W11678996) |
|
$ 1,028.99 | |||||
| 3 | W11730543 | Bracket, Cooktop (Replaces: W11593284) |
|
Immediately | $ 11.52 | ||||
| 4 | WPW10248259 | Element, Bridge (Replaces: W10248259) |
|
$ 374.15 | |||||
| 5 | W11517959 | Element (3000 And 1400w) (Replaces: W10275048) |
|
Immediately | $ 134.44 | ||||
| 6 | W11171119 | Element (1200w) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 7 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 8 | W11729951 | Pan, Radiant Element (Replaces: W11300812) |
|
$ 223.66 | |||||
| 9 | W11663556 | Spring, Element (Replaces: W11600012) |
|
Immediately | $ 14.84 | ||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 11 | W11706247 | Element, Warm Zone (Replaces: W11668631) |
|
Immediately | $ 133.94 | ||||
| 12 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 23.03 | ||||
| 13 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 14 | W11781595 | Bracket, Rear Cooktop (Replaces: W11687510) |
|
$ 165.50 | |||||
| 15 | W11747357 | Corner, Brace (left) (Replaces: W11673746) |
|
$ 26.54 | |||||
| 16 | W11784047 | Gasket Cooktop, Console (Replaces: W11751866) |
|
$ 46.12 | |||||
| 17 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 18 | W11846982 | Screw (Replaces: W10498399) |
|
$ 11.75 | |||||
| ARI5A21FEE31EB202DDA189D0EC8CA36187 | (left Front, Left Rear) |
|
- | ||||||
| W11723847 | Quick Start Guide |
|
- | ||||||
| W11747358 | Corner, Brace (right) (Replaces: W11673745) |
|
$ 26.54 | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| ARI9E076A4EB9AA7BF3DBA6ED9D0C1B5D12 | (center Rear) |
|
- | ||||||
| W11640308 | Owner's Manual |
|
- | ||||||
| W11732720 | Tech Sheet |
|
- | ||||||
| W11781597 | Harness, Cooktop (Replaces: W11678211) |
|
- | ||||||
| W11781580 | Harness, Front Dual (Replaces: W11678209) |
|
- | ||||||
| W11729952 | Harness, Hidden Bake (Replaces: W11585874) |
|
$ 61.80 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11784045 | Harness, Main (Replaces: W11670823) |
|
- | ||||||
| W11771002 | Harness, Dc (Replaces: W11671200) |
|
Immediately | $ 177.07 | |||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- |
